Name:Angle Valves
Passage:50-200, 50-200
Pressure:5k, 10k
Criteri On:Jis F 7306, F 7308

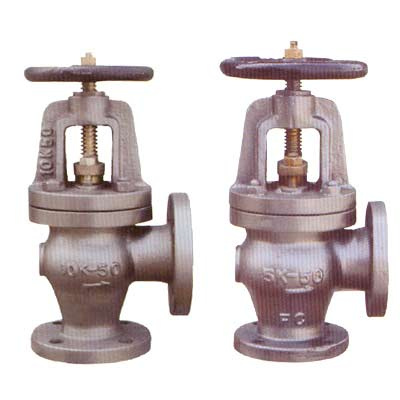

Cast Iron Angle Valve
MARINE CAST IRON 5Kg/cm2 ANGLE VALVES JIS F 7306
MARINE CAST IRON 10Kg/cm2 ANGLE VALVES
JIS F 7308
Rating | SIZE | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
5kgf/cm2 (JIS F 7306) | d | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
L1 | 100 | 115 | 130 | 150 | 170 | 190 | 15 | 275 | 310 | 360 | 395 |
A | 8 | 9 | 9 | 10 | 11 | 12 | 450 | 16 | 17 | 18 | 20 |
H | 240 | 225 | 265 | 310 | 330 | 380 | 315 | 540 | 610 | 690 | 770 |
W | 160 | 180 | 180 | 224 | 250 | 280 | 67 | 355 | 400 | 500 | 630 |
€1 | 17 | 22 | 27 | 33 | 42 | 50 | 105 | 84 | 100 | 112 | 1270 |
Weight l | 12.9 | 18.2 | 23.4 | 33.7 | 46.2 | 63.4 | 200 | 166 | 243 | 327 | 459 |
5kgf/cm2 (JIS F 7308) | d | 50 | 65 | 80 | 100 | 125 | 150 | 230 | 250 | 300 | 350 | 380 |
L1 | 120 | 130 | 140 | 160 | 180 | 205 | 17 | 290 | 320 | 360 | 420 |
a | 10 | 11 | 11 | 12 | 13 | 14 | 475 | 20 | 22 | 24 | 26 |
H | 255 | 270 | 275 | 315 | 360 | 405 | 355 | 570 | 645 | 710 | 790 |
W | 160 | 200 | 200 | 250 | 280 | 315 | 67 | 450 | 500 | 560 | 630 |
€1 | 17 | 22 | 27 | 33 | 42 | 50 | 125 | 84 | 100 | 112 | 127 |
Weight l | 18.2 | 25.4 | 27.4 | 40.6 | 69.9 | 81.0 | 200 | 211 | 293 | 386 | 544 |
5kgf/cm2 (JIS F 7310) | d | 50 | 65 | 80 | 100 | 125 | 150 | 250 | | | | |
L1 | 120 | 130 | 150 | 170 | 200 | 225 | 19 | | | | |
a | 10 | 11 | 12 | 13 | 15 | 16 | 540 | | | | |
H | 255 | 270 | 295 | 330 | 390 | 435 | 455 | | | | |
W | 160 | 200 | 224 | 250 | 315 | 355 | 67 | | | | |
€1 | 17 | 22 | 27 | 33 | 42 | 50 | 155 | | | | |
Weight l | 18.0 | 25.0 | 35.7 | 49.2 | 76.1 | 103 | | | | | |
As a marine valve manufacturer, we specialize in producing JIS Standard marine valves and we already get the ISO-DNV & CE Certificate. The products including bronze valve, cast steel valve and cast iron valve. The bronze valve, the sales volume of which amounts to 60, 000 sets per year, production value 100 million RMB yuan, is the key product of Zhongxin and popular in Europe, America and Southeast Asia.
In recent years, Zhongxin has been developing actively the internal market and tries to provide the customers with reasonable price and excellent quality products. All friends are welcome sincerely to visit us.
