Marine valves
Main Products:
A) standard marine-purposed butterfly valve
B)marine blind plate valve
C) marine lifting stop valve
D) marine check valve
E) marine gate valve
F) marine sea valve
G) marine valve chest
H) marine quick close valve
I) marine storm valve
Additional Specification:
With nominal diameters of DN6MM-DN750MM,
Nominal pressure PN0.1Mpa-PN6.4Mpa
Standard: ISO, JIS, DIN, ATSM, CB/T, GB, CBM;
Certificates:
It has certified by some authoritative ship classification societies such as CCS, GL, BV, DNV, KR, ABS, ISO9000: 2000 Quality system;
Air pipe head is certified by CCS, KR, GL ISO9000: 2000 Quality system.
|

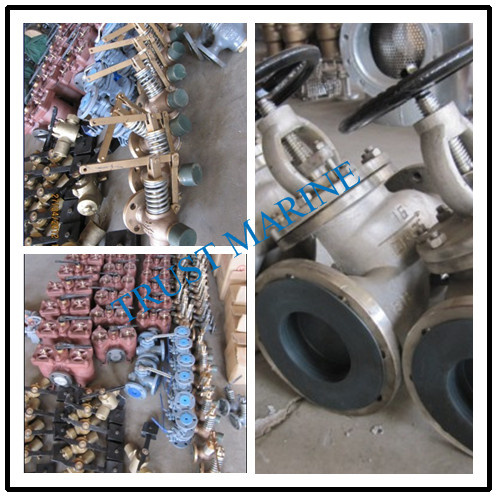

JIS F7309 Cast Iron 16K Globe Valve |
|
DN |
L |
H |
Connection Dimension of Flange |
Handwheel's Dia. |
Weight
kgs |
|
D |
C |
t thickness |
n-d |
Do |
S |
|
50 |
220 |
285 |
155 |
120 |
20 |
8-19 |
160 |
110 |
19.9 |
|
65 |
270 |
310 |
175 |
140 |
22 |
8-19 |
200 |
135 |
28.3 |
|
80 |
300 |
340 |
200 |
160 |
24 |
8-23 |
224 |
160 |
32.4 |
|
100 |
350 |
385 |
225 |
185 |
26 |
8-23 |
250 |
195 |
48.7 |
|
125 |
430 |
455 |
270 |
225 |
26 |
8-25 |
315 |
240 |
73.1 |
|
150 |
500 |
510 |
205 |
260 |
28 |
12-25 |
355 |
280 |
104 |
|
200 |
570 |
630 |
350 |
305 |
30 |
12-25 |
450 |
365 |
162 |
|
1) Applicable medium:sea water,fresh water,oil≤205°C steam. 2) All material and dimension conform to JIS standard. |
Jingjiang trust trading Co., Ltd. Was established in 2008, we' Re specializing in manufacturing & exporting marine equipment, construction material, ship models and heating treatment fixtures. With professional mechanical engineers and sales staff mastered in international trade, we' Ve been devoting ourselves to introducing Chinese best products to worldwide customers. Our advantages are good price, excellent quality, fast delivery & good service.
Our main scope of business:
Marine:
*Propeller & shaft system
* lifeboat, davit, life raft, life jacket, life buoy,
* anchor, chain, crane, winch, windlass, bollard, fairlead, rope, fender
* marine door, window, ladder, valve, pump & other fittings
* Marine hardwares, blocks, riggings, wire ropes and slings
* fishing tackles (nets, compass, light, cage)
* Water hydrophore, fresh water maker, sewage treatment plant
Construction material: Galvanized steel planks
Heating treatment fixtures
We can also supply complicated equipment according to buyer' S drawing.
We warmly welcome our customer' S comments and advice. In the future, we will work closely with our factories to improve ourselves in quality and service so as to serve our customers better.
