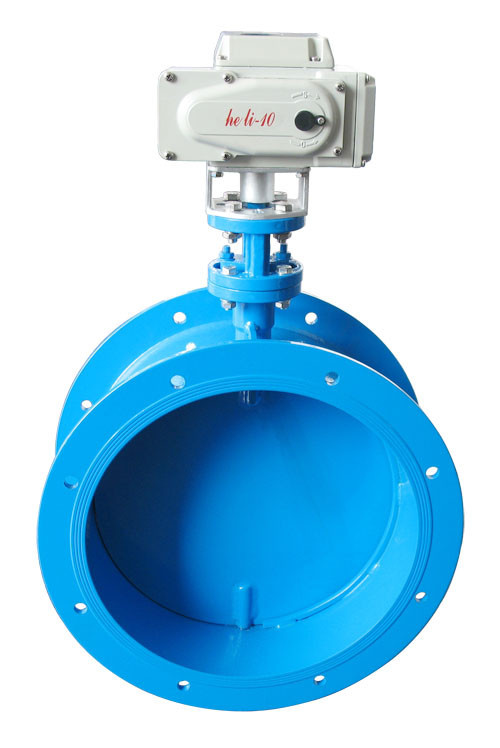

Metal Seal Butterfly Valve with Electric Actuator (HL-50)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
1. Delivery time
10~15 days after the receipt of payment
2. Payment Terms
100% by T/T in advance
3. Supply Ability
200 Set/Sets per Week 2, 000PCS/month
4. MOQ: 1 PCS
Model
Performance
|
HL-50
|
Voltage
|
DC24V
|
DC220V
|
AC24V
|
AC110V
|
AC220V
|
AC380V
|
Motor Power
|
90W
|
Rated current
|
7A
|
0.9A
|
8.0A
|
2A
|
0.92A
|
0.45A
|
Output Torque
|
150N.m/250N.m/300N.m/500N.m
|
Action Time
|
9S/15S/20S/30S/60S
|
Rotary angle
|
0~90°
|
Weight
|
7kg
|
7.8kg
|
Voltage-with standing valve
|
500VAC/1minute
|
1500VAC/1minute
|
Insulated resistance
|
100 MΩ/300VDC
|
100 MΩ/500VDC
|
Protection Class
|
IP67
|
Surrounding temperature
|
-25°C~60°C(The other temperatures can be customized)
|
Installation angle
|
Any angle
|
Case material
|
Aluminium-casting components
|
Optional function
|
Overload protection function, Heater
|
Prod Model: |
HL-50 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
Material Of Seal Surface: |
Metal Hard Sealed |
Working Temperature: |
Medium Temperature (',120??C
|
Application: |
Water Industrial Usage |
Wenzhou Heli Automatic Meter Co., Ltd. (HL) is a High-tech enterprises specialized in manufacturing electric actuator, pneumatic actuator, rotary air damper actuator, integrating scientific research, production, distribution and service.
Founded in 1999, covers an areas of 13118 square meters. HELI company consistently pays attention to product quality and all of HELI products have passed the CE certification, the test of Shanghai industrial Automatic Instrument Institute with every performance and index qualified, etc.
HELI will bring you much more convenience. By consistently keeping the management conception of taking market as guide, serving by quality and credit, and developing by technology and innovation. Our company guarantees to realize the goal of double-win with user's benefits as precondition. In the future, HELI people will actively take the challenge with excellent quality, scientific management and perfect service.
Sincerely welcome friends all over the world to come here for negotiation and cooperation.
