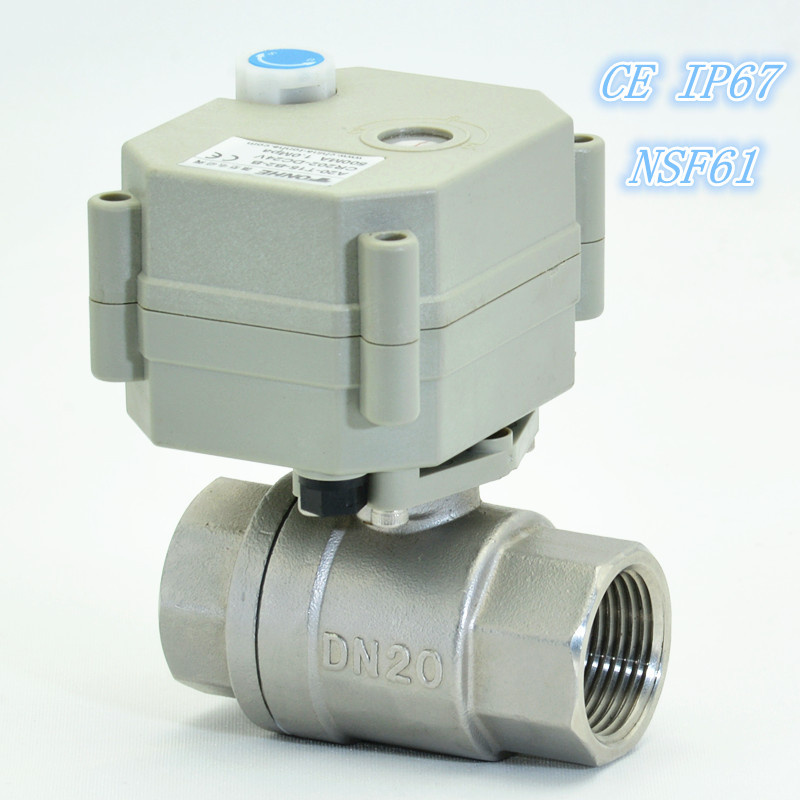

Tonhe series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features.
Design Features
1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4 Good sealing performance
For occasions
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation equipment, environmental protection.
Detailed parameters
Valve size --------3/4"
Valve Body material --------Stainless Steel
Actuator material ---------Engineering Plastics
Sealing material --------- EPDM & PTFE
Rated voltage --------- DC5V, DC12V, DC24, DC/AC9-24V, DC/AC9-35V (Optional)
Wiring control methods ----------CR2-01, CR3-01, CR3-02, CR3-03, CR3-04, CR5-01, CR7-01, CR7-02, CR7-03 (Optional)
Working current ---------- ≤ 500MA
Life time --------- 70, 000 times
Protection class ------- IP67
Open/close time ------------ ≤ 5 S
Actuator rotation --------- 90°
Max. Torque force --------- 2 Nm
Cable Length --------- 0.5m, 1.5m (Optional)
Manual override --------Yes(Optional)
Indicator --------- Yes(Optional)
Maximum working pressure -------------1.0MPa
Circulation medium ------------- Fluid, Air
Environment temperature ---------- 15º C~50º C
Liquid temperature ---------- 2º C~90º C
Remarks
Inquiry — — You can email us to have an inquiry, pls let us know the valve you need about: Valve size, valve material, working voltage, with /without manual override &open and close indicator.
Order — — No minimum quantity, you can order sample first.
Payment — — Paypal, bank to bank
Sample express — — TNT, DHL, UPS...According to customers' requirement.
