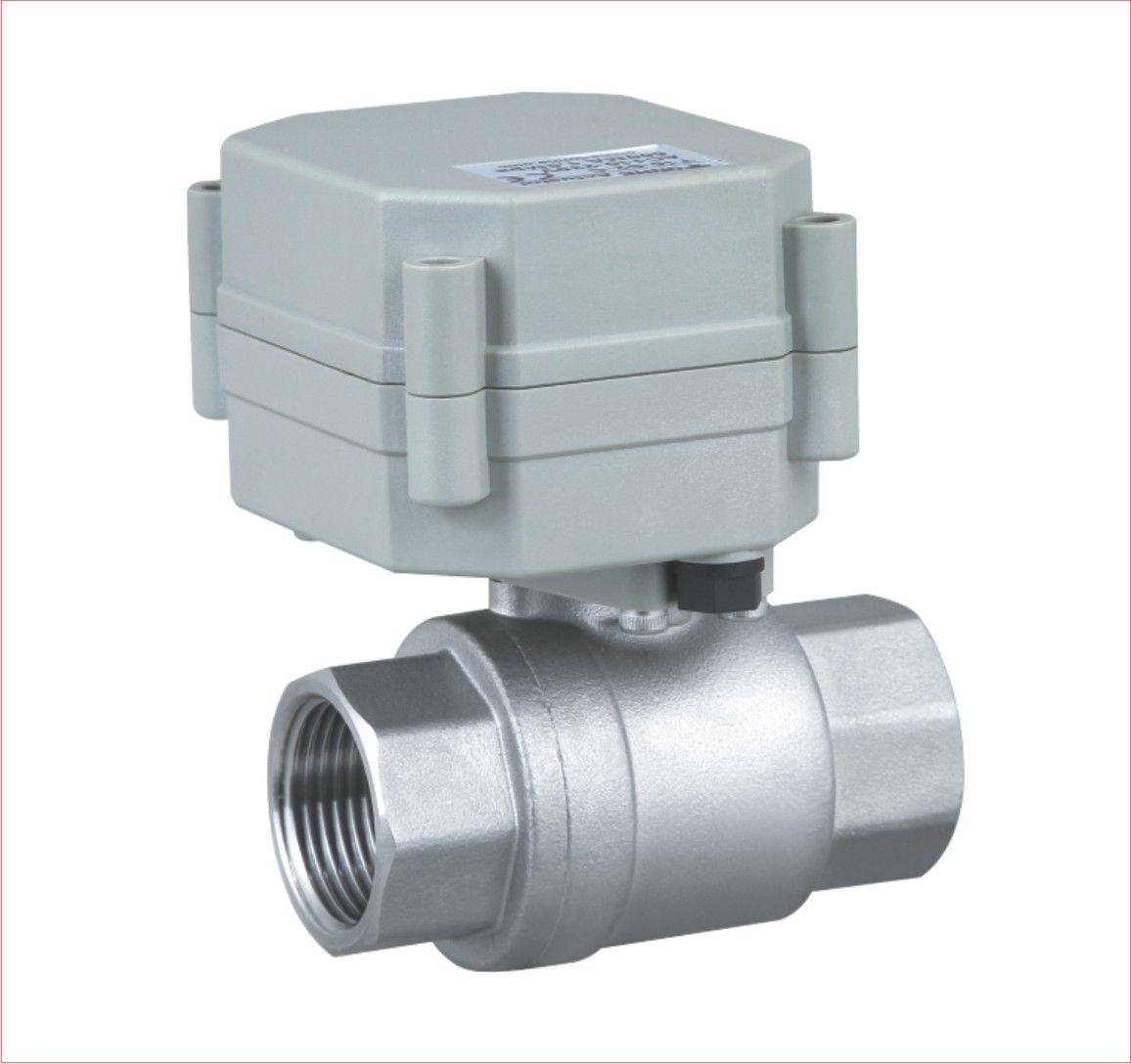

Product Characteristics:
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification
Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.
Specification:
Size: 1''
Rated Voltage: DC5V/DC12V/DC24V, DC/AC3-6V, DC/AC9-24V, DC/AC110-230V (Optional)
Wiring control: CR2-01, CR2-02, CR3-01, CR3-02, CR3-03, CR3-04, CR3-05, CR6-01, CR7-02 (Optional)
Manual override: No
Indicator: No
Max. Working pressure: 1.0MPa
Body: Stainless
Actuator: Modified plastic
Internal diameter: 25mm
Protection class: IP67
|
Product size |
1/2" , 3/4" , 1" , 1-1/4" (Optional) |
|
maximum working pressure |
1.0MPa |
|
Circulation medium |
Fluid, air |
|
Rated voltage |
DC5V, DC12V, DC24, DC7-35V, DC/AC3-6V, DC/AC9-24V, DC/AC110-230V (Optional) |
|
Wiring control methods |
CR2-01, CR2-02, CR3-01, CR3-02, CR3-03, CR3-04, CR3-05, CR6-01, CR7-01, CR7-02. (Optional) |
|
Working current |
≤ 80MA |
|
Open/close time |
≤ 5S |
|
Life time |
70000 times |
|
Valve Body material |
Brass, Nickel plated Brass, 304 Stainless steel, 306 Stainless steel (Optional) |
|
Actuator material |
Engineering Plastics |
|
Sealing material |
EPDM & PTFE |
|
Actuator rotation |
90° |
|
Environment temperature |
-15centigrade - 50centigrade |
|
Liquid temperature |
2centigrade - 90centigrade |
|
Manual override |
Yes / No (Optional) |
|
Indicator |
Yes / No (Optional) |
