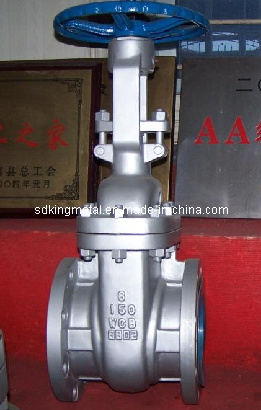

Mss Sp-70 Cast Iron Non-Rising Stem Gate Valve with CE
| Price: |
US $ 100-2000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P |
Mss. Sp-701 class 125lb GATE VALVESare suitale for use on water pipelines
As opening and closing devices for PN125 lb working ermperature not
Exceeding 232oC
Mss. Sp-70 class 250lb GATE VALVES are suitable for use on water pipelines
As opening and closing devices for PN25 LB workinig temperature not
Exceeding 232oC
|
materials for main parts |
|
|
|
|
body |
grey cast iron |
ASTM 126 |
|
bonnet |
grey cast iron |
ASTM 126 |
|
stem |
brass |
ASTM B16 |
|
yoke bushing |
bronze |
ASTM B62 |
|
seat sealing face |
bronze |
ASTM B62 |
|
wedge sealing face |
bronze |
ASTM B62 |
|
hand wheel |
grey cast rion |
ASTM A126 |
|
gland packing |
lubricated asbestos |
YS250F |
|
scope of applicant |
|
|
|
|
|
name |
class 125LB |
class250LB |
|
nominal pressure PN |
125 |
250 |
|
shell test pressure |
187.5 |
375 |
|
sealing testy pressure |
125 |
250 |
|
seat test jpressure(AIR) |
50 |
100 |
|
Dimensional data(non-rising stem) |
|
|
|
|
Class 125LB |
|
SIZE |
4'' |
5'' |
6'' |
8'' |
10'' |
12'' |
|
A |
9'' |
10'' |
10 1/2'' |
11 1/2'' |
13'' |
14'' |
|
B |
17 3/4'' |
20 1/8'' |
23 1/8'' |
27 3/4'' |
32 5/16'' |
37 3/8'' |
|
C |
10'' |
10'' |
12'' |
14'' |
16'' |
18'' |
|
D |
9'' |
10'' |
11'' |
13 1/2'' |
16'' |
19'' |
|
E |
15/16'' |
15/16'' |
1'' |
1 1/8'' |
1 3/16'' |
1 1/4'' |
|
Class 250LB |
|
SIZE |
4'' |
5'' |
6'' |
8'' |
10'' |
12'' |
|
A |
12'' |
15'' |
15 7/8'' |
16 1/2'' |
18'' |
19 3/4'' |
|
B |
18 3/8'' |
20 3/4'' |
23 13/16'' |
28 5/8'' |
32'' |
34 1/2'' |
|
C |
12'' |
12'' |
16'' |
17'' |
20'' |
20'' |
|
D |
10'' |
11'' |
12 1/2'' |
15'' |
17 1/2'' |
20 1/2'' |
|
E |
1 1/4'' |
1 3/8'' |
1 7/16'' |
1 5/8'' |
1 7/8'' |
2'' |
| Prod Model: |
SDNV060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4''-12'' |
| Connection Form: |
Flange |
| Material: |
Cast Iron |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
We are one of the biggest manufacturers and exporters of Pipeline products in China. We supply butt-welding pipe fittings, stainless steel screwed pipe fittings, forged steel flanges, cast iron valves, cast steel valves, stainless steel valves, balance valves rubber expansion joint, and much more. With many years of effort and support from our valuable customers, these products have obtained a big marker share in the world. At present our products have been export to Asia(Singapore, Tailand, Saudi Arabia, Bahrain, Yemenm, Jordan)Europe(Gemany, Italy, Spain, France, Portudal, Poland)Africa(Egypt, , Camaroon, Morocco)America(USA, Chile, Peru, Panama, Brazil, Paraguary Mexico)
Our business policy is noted for four "F":
Quality First Reputation First.
Customer First Price Fair.
Friends, traders and manufacturers all over the world are welcome to join us establishing and developing business relations on the basis of equality and mutual benefit under the principle of "Provide The World Market With High Quality Goods And Best Service".
Any information, samples and drawing s that you can provide will facilitate us to make the correct supply to meet your special requirement.
