| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 2/Piece |
| Pay Type: | T/T,Western Union |
| Foshan Clitech Air-conditioning Equipment Co., Ltd(Foshan ) | |||||

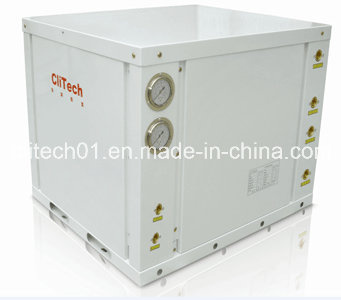

| Water source heat pump with multi use (Cooling, heating and hot water) | |||||
| Model | unit | CWM-40XB | |||
| specification | Sanitary hot water working condition | Rated heating capacity | kW | 34.7 | |
| BTU/h | 118396 | ||||
| hot water supply | T/h | 0.75 | |||
| Rated heating input power | kW | 7.43 | |||
| rated heating input current | A | 14.86 | |||
| COP | 4.67 | ||||
| cooling for AC | cooling capacity | kW | 27.1 | ||
| BTU/h | 92465 | ||||
| cooling input power | kW | 5.8 | |||
| cooling input current | A | 11.6 | |||
| EER | 4.67 | ||||
| heating for AC | heating capacity | kW | 23.9 | ||
| BTU/h | 81547 | ||||
| cooling input power | kW | 6.3 | |||
| cooling input current | A | 12.8 | |||
| COP | 3.79 | ||||
| cooling& heating working condition | average cooling capacity | kW | 23.5 | ||
| BTU/h | 80182 | ||||
| Average heating capacity | kw | 30 | |||
| BTU/h | 102360 | ||||
| Hot water supplyer | T/h | 0.65 | |||
| Average input power | kW | 6.1 | |||
| Acerage input current | A | 12.2 | |||
| EER+COP | 8.77 | ||||
| Max running current | A | 24 | |||
| Power supply | V/Ph/Hz | 380V/3N/50Hz | |||
| The rated outlet water temp | º C | 55 | |||
| The max outlet water temp | º C | 60 | |||
| Nosie | dB(A) | 63 | |||
| Dimension | width | mm | 800 | ||
| deepth | mm | 1080 | |||
| height | mm | 1300 | |||
| weight | kg | 260 | |||
| wire controller | type | Many color LCD backlit wire, can accept panel buttons and infrared remote control | |||
| main function | Working mode control, independent working temperature setting, status display, timer switch machine Settings, key lock function, colorful backlit, etc | ||||
| remote monitoring | type | Remote monitoring system/can choose configuration | |||
| Refrigeration circulation structure | Refrigeration circulation quantity | 2 | |||
| throttle type | The equilibrium thermal expansion valves | ||||
| refrigeration | Type | R410A | |||
| refrigerant charge | kg | 4 | |||
| Max working pressure | bar | 41.5 | |||
| compressor | Type | rotary/scroll | |||
| locked-rotor current | A | 60 | |||
| safe protect function | Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect | ||||
| hot water side heat exchange | type | Efficient shell and tube heat exchanger | |||
| fluid | 100 percent water | ||||
| qty | piece | 1 | |||
| water flow | m 3 /h | 5.97 | |||
| water presure down | kPa | 14 | |||
| pipe size | inch | 1-1/4 | |||
| water side max working pressure | kPa | 1000 | |||
| water source side heat exchange | type | Efficient sleeve and tube heat exchanger | |||
| fluid | 100 percent water | ||||
| qty | piece | 1 | |||
| water flow | m 3 /h | 2.57 | |||
| water pressure | kPa | 14 | |||
| pipe size | inch | 1-1/4 | |||
| water side max working pressure | kPa | 1000 | |||
| air-condition side heat exchange | type | Efficient tube and tube heat exchanger | |||
| fluid | 100 percent water | ||||
| qty | piece | 1 | |||
| water flow | m 3 /h | 4.66 | |||
| water pressure down | kPa | 14 | |||
| pipe size | inch | 1-1/4 | |||
| water side max working pressure | kPa | 1000 | |||
| Rated hot water working condition: water-source side water inlet temp is 15º C. inital temp of hot water is 15º C, termination temp of hot water is 55 º C. rated cooling working condition: water-source side water inlet temp is 18º C, inlet temp is 29º C. Use-side water inlet temp is 12º C, outlet temp is 7º C. rated heating working condition rated heating: water-source side water inlet temp is 15. º C Use-side water inlet temp is 40 º C, water flow the same to summer water flow. cooling with heating working condition: inital temp of hot water is 15º C, termination temp of hot water is 55. º C air-condition water side water inlet temp is 12º C, outlet temp is 7 º C. | |||||
| Prod Model: | CWM-40XB |
|---|---|
| Markets: | Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: | 380V/3pH/50Hz |
| Mode: | Cwm-40xb |
| Heating Capacity: | 35kw |
| Regrigerant: | R410 |
| Cop: | 4.72 |
| Noise Level: | 63 |
| Brand: | Clitech |
| Dimension: | 800mm*1080mm*1300mm |
| Weight: | 260kgs |
| Heat Exchanger: | Tube in Tube |
| Heat Temperature: | 50-70??C |
| Work Environment: | Common Heat Pump |
| Heat Source: | Water-source |
| Application: | Office Building , Restaurant |
| Certification: | CCC |
