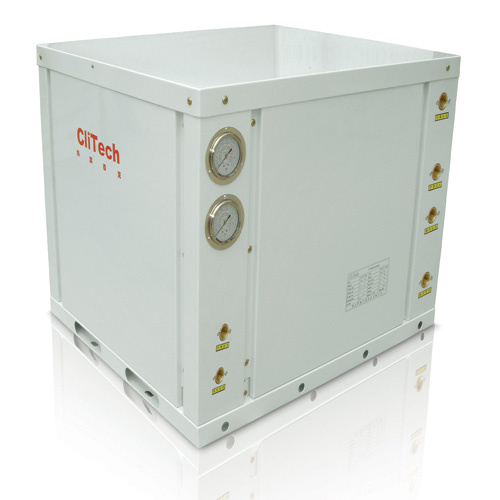

Multi-functional ground source heat pump .
1) Heating, cooling and hot water.
2) High efficiently compressor and R410A.
3) Reverse cycle valve.
4) Intelligent controller and adjustments by quickmind microprocess with possibility IR remote cntroller.
5) Water side equipped with efficiently tube in tube heat exchanger
6) Thermostatic expansion valve
Foshan Clitech Air-conditioning Equipment Co.,Ltd(Foshan ) |
|
ground source heat pump (Cooling ,heating and hot water) |
|
Model | unit | CWM-20XB |
specification | Sanitary hot water working condition | Rated heating capacity | kW | 17.4 |
BTU/h | 59369 |
hot water supply | T/h | 0.37 |
Rated heating input power | kW | 3.7 |
rated heating input current | A | 7.4 |
COP |
| 4.70 |
cooling for AC | cooling capacity | kW | 14.1 |
BTU/h | 48109 |
cooling input power | kW | 2.95 |
cooling input current | A | 5.9 |
EER |
| 4.78 |
heating for AC | heating capacity | kW | 15.9 |
BTU/h | 54251 |
cooling input power | kW | 4.2 |
cooling input current | A | 8.6 |
COP |
| 3.79 |
cooling&heating working condition | average cooling capacity | kW | 12.1 |
BTU/h | 41285 |
Average heating capacity | kw | 14.5 |
BTU/h | 49474 |
Hot water supplyer | T/h | 0.31 |
Average input power | kW | 3 |
Acerage input current | A | 6 |
EER+COP |
| 8.87 |
Max running current | A | 12 |
Power supply | V/Ph/Hz | 380V/3N/50Hz |
The rated outlet water temp | ºC | 55 |
The max outlet water temp | ºC | 60 |
Nosie | dB(A) | 60 |
Dimension | width | mm | 680 |
deepth | mm | 1020 |
height | mm | 770 |
weight |
| kg | 170 |
| wire controller | type |
| Many color LCD backlit wire, can accept panel buttons and infrared remote control |
main function |
| Working mode control, independent working temperature setting, status display, timer switch machine Settings, key lock function, colorful backlit, etc |
remote monitoring | type |
| Remote monitoring system/can choose configuration |
Refrigeration circulation structure | Refrigeration circulation quantity |
| 1 |
throttle type |
| The equilibrium thermal expansion valves |
refrigeration | Type |
| R410A |
refrigerant charge | kg | 2 |
Max working pressure | bar | 41.5 |
compressor | Type |
| rotary/scroll |
locked-rotor current | A | 60 |
safe protect function |
| Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect |
hot water side heat exchange | type |
| Efficient shell and tube heat exchanger |
fluid |
| 100 percent water |
qty | piece | 1 |
water flow | m 3 /h | 2.99 |
water presure down | kPa | 12 |
pipe size | inch | 1 |
water side max working pressure | kPa | 1000 |
water source side heat exchange | type |
| Efficient sleeve and tube heat exchanger |
fluid |
| 100 percent water |
qty | piece | 1 |
water flow | m 3 /h | 1.33 |
water pressure | kPa | 12 |
pipe size | inch | 1 |
water side max working pressure | kPa | 1000 |
air-condition side heat exchange | type |
| Efficient tube and tube heat exchanger |
fluid |
| 100 percent water |
qty | piece | 1 |
water flow | m 3 /h | 2.43 |
water pressure down | kPa | 12 |
pipe size | inch | 1 |
water side max working pressure | kPa | 1000 |
Rated hot water working condition: water-source side water inlet temp is 15ºC inital temp of hot water is 15ºC, termination temp of hot water is 55 ºC. rated cooling working condition: water-source side water inlet temp is 18ºC, inlet temp is 29ºC. Use-side water inlet temp is 12ºC, outlet temp is 7ºC . rated heating working condition rated heating: water-source side water inlet temp is 15ºC. Use-side water inlet temp is 40ºC , water flow the same to summer water flow. cooling with heating working condition: inital temp of hot water is 15ºC, termination temp of hot water is 55ºC. air-condition water side water inlet temp is 12ºC, outlet temp is 7ºC |
|
|
|
|
|
Clitech factory established in 2008 years in foshan city, Guangdong province. Now we already developed stable and being the main export heat pump manufacture in China. Every year we will focus new technology heat pumps, and developed more good quality and more stable heat pump to our customers. Our heat pumps certificated ISO, 3C and CE, which have been sold to more than 90 countried and areas all over the world. Our good quaity, high technology and nice service is high praised by our customers.
Our main product fosuc on heat pump, which including air source hot water heat pump 5-100KW heating capacity; Air source heat pump for heating and cooling range from 8kw to 530kw; DC Inverter air source hot water heat pump 11-18KW; Ground source hot water heat pump 8-350KW heating capacity; Water source heat pump for heating and cooling range from 10KW to 290kw; High temp air source heat pump with 70 degree outlet water temp range from 12kw to 80kw; And swimming pool air source heat pump range from 8kw to 100kw, and multi-functional air source heat pump for heating, cooling and hot water from 12ke to 100kw; Multi-functional water source heat pump for heating, cooling and hot water range from 8kw to 48kw and EVI air source heat pump water heater range from 12kw to 80kw. Our heat pump can apply for small and big projects also in domestic and abroad marketing. OEM service can afford too.
Our heat pumps apply for domestic and commercial projects, hospital, office building, domestic home, factory, hotels and restaurant, swimming pools or SPA pools, holiday villages, schools or university and so on, its most for the necessary areas for heating, cooling or hot water. Our heat pumps can connect with solar, fan or floor heating. Its can save lots of energy everyday, its good for the development all over the world...Also saft in our life.
We will afford the nice and professional after-sale service. Maybe the world economic developed fast and fast, hope we not just being customers and supplier, hopely one day we can share the interests and being nice friends.
If you are intested in our heat pumps, welcome to contact us.
