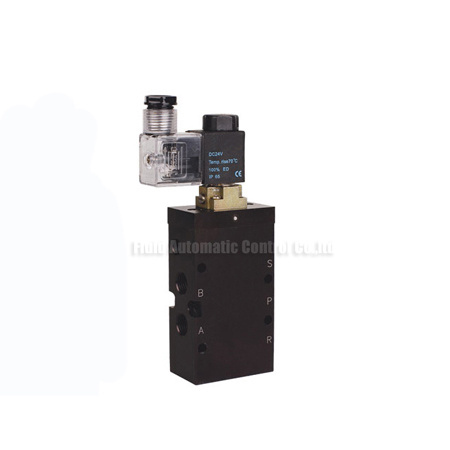

*Body Material Aluminum alloy
*Pilot Operated,Inner Pilot type
*Large Aperture,big flow rate,Rated flow 1300L/Min
*Applicable for big bore size and long stroke cylinder
*Coaxial structure design keep from friction between seal and valve body
*Sealing material is PU to ensure better durability
| ORDERING CODE |
| STV | 5 | 1/4 | AC220V | W |
| Type | Function Type | Port Size | Voltage | Electricity Connect Form |
| STV:Stope Type Tiger solenoid valve | 5:Two Position Five way Single Coil | 1/4:G1/4 | AC220V:220VAC | Blank:Standard Connector |
| AC110V:110VAC | LD:Brown Din Connector with Light Indicator |
| STA:Stop Type Air Operated valve | DC24V:24VDC | LD1:White Din Connector With Light Indicator |
| AC24V:24VAC | W:Wire outleading type |
| DC12V:12VDC |
| SPECIFICATION |
| MODEL | STV-5-1/4 |
| Working Fluid | Filtered Compressed Air |
| Position And Way Numbers | Two Position-Five Way |
| Effective sector Area | 22.5mm²(CV=1.32) |
| Rated Flow | 1300L/Min(CV=1.32) |
| Pressure Resistance | 1.2MPa |
| Working Pressure | 0.25~1.0MPa |
| Ambient&Fluid Temp | 5~50℃ |
| Motion Pattern | Inner Pilot Operated Mechanical Spring return |
| Body Material | Aluminum Die-casting |
| Seals Material | NBR |
| Insulation&Protection Class | F Class IP65 |
| Switching Frequency | 5 Cycle/Sec |
| Response Time | 0.05Sec |
| Electricity connection | Din connector or Wire outleading |
| Voltage Tolerance | ±10% |
| Power consumption | Holding: AC:5.5VA DC:4.8W |
| Port Size | G1/4" |
