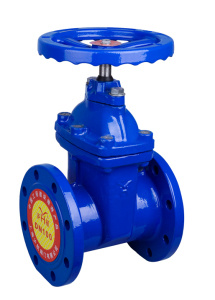

Non-Rising Stem Resilient Soft Seated Gate Valve

Non-Rising Stem Resilient Soft Seated Gate Valve
Price: US $ 10/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Specification:
Size: DN 50 - DN 600
Design as DIN 3352 F4.
Face-to-Face dimension conforms to DIN 3202 F4.
Flange drilling is suitable for DIN 2532 / DIN 2533.
Epoxy fusion coating.

Pressure / Temperature rating:

Working Pressure

10 bar

16 bar

Testing Pressure

Shell: 15 bars; Seat: 11 bar.

Shell: 24bars; Seat: 17.6 bar.

Working Temperature

10°C to 120°C

Suitable Media

Water, oil & gas.


Materials:

No.

Part

Material

1

Body

Ductile iron

2

Bonnet

Ductile iron

3

Wedge

Ductile Iron

4

Wedge coating

EPDM / NBR

5

Gasket

NBR

6

Stem

(2 Cr13) X20 Cr13

7

Stem nut

Brass

8

Fixed washer

Brass

9

Body bonnet Bolt

Steel 8.8

10

O Ring

NBR / EPDM

11

Hand wheel

Ductile iron / Steel
Prod Model: Z41H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard: Standard
Size: Dn50-600
Certificate: DIN, BS, ISO, ANSI, as, JIS
Delivery Time: in 45days
Warranty: 18months
Connection Form: Flange
Material: Carbon Steel
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Inside Gate Valve
Application: Household Usage
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.

We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
