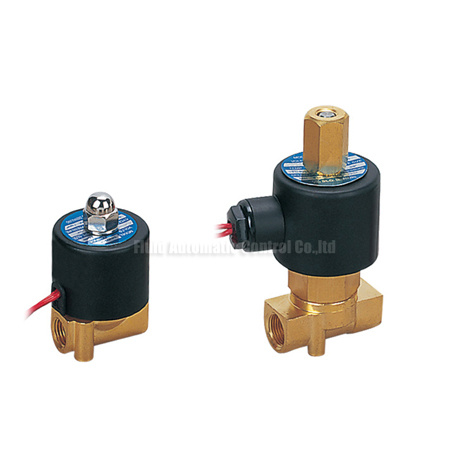

*2W Series brass valve flow aperture size 1.2mm,2mm,2.5mm,4mm
*Two position two way directly acting
*Body stainless steel or brass for option
*Port Size G1/8”,G1/4” G3/8
*Seal with NBR,EPDM,VITON Optional
*Water-Proof coil or explosion-proof available
*Fast respond,low noise,low consumption
ORDERING CODE |
| 2W | 025 | 08 | B | S | E | AC220V |
| Type | Aperture Flow Rate | Port size | Body Material | Coil type | Seal Material | Voltage |
| 2W:2W Series Two Position Two Way Solenoid valve | 012:1.2mm | 06:G1/8" | Blank:Brass | Blank:Round Coil | Blank:NBR | DC12V |
| 020:2.0mm | DC24V |
| 025:2.5mm | 08:G1/4" | E:EPDM(For Steam) | AC110V |
| 2WH:2WH Series High Pressure Two Position Two Way Solenoid valve | B:Stainless Steel | S:Square Coil | AC220V |
| 040:4.0mm | 10:G3/8" | V:VITON (For High Temperature and Vacuum) | AC380V |
| AC24V |
| SPECIFICATION |
| Model No | 2W025-06 | 2W025-08 | 2W040-10 | 2WH012-06 | 2WH012-08 | 2WH020-10 |
| Working Medium | Air,Water,Oil,Gas |
| Motion Pattern | Direct Drive Type |
| Initial State | Normal Close or Normal Open |
| Aperture of Flow Rate(mm) | 2.5 | 4 | 1.2 | 2 |
| CV Value | 0.23 | 0.6 | 0.05 | 0.15 |
| Joint Pipe Bore | 1/8″ | 1/4″ | 3/8″ | 1/8″ | 1/4″ | 3/8″ |
| Operation Fluid Viscosity | 20 CST(Below) |
| Working-pressure MPa | Air,Water,Oil,gas: 0~0.7 | Air,Water,Oil: 0~2.0 |
| Max. Pressure Resistance MPa | 1 | 3.5 |
| Operating Temperature ºC | -5 ~ 80ºC |
| Voltage Range | ±10% |
| Material of Body | Brass |
| Material of Oil Seal | NBR,EPDM or VITON |
Fenghua Fluid Automatic Control Co., Ltd. is a serious professional manufacturer of Pneumatic line products.
Company located in Xikou which is the national famous scenic coastal town enjoying very convenient sea, land and air transportation
Integrating development, production and sales together, FLUID possessing advanced equipment and strict complete managing system. Currently we have main products line air service units, Directional control valve, air cylinder, air fittings, air tubings, vacuum components, pneumatic parts and hydraulic fitting etc
With over 10 years experience and thorough knowledge to pneumatic industrial sector, FLUID dedicates to provide customers the high quality products, best technical solution and faithful service.
FLUID taking"customer supreme, quality first, reputation oriented" as tenet, keeping pace of every technical improvment and innovation to provide rich stocked standard products and customerized products also.
FFLUID staff promise"Reasonable price, short leading time, never ever lie to customer".
Both for mutual benefit and prosperous futher, FLUID welcome customers domestic and abroad to contact us for a long term cooperation.
