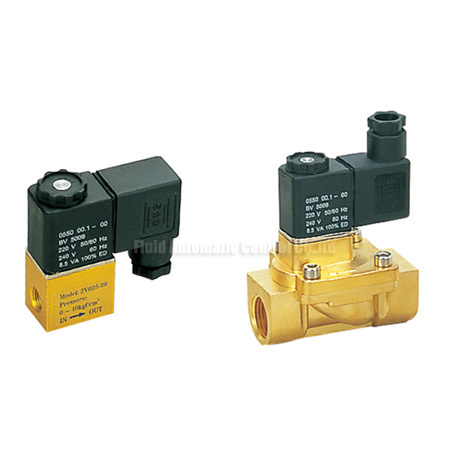

*2V Series solenoid valve flow aperture size 2.5mm,13mm,25mm
*Two position two way directly acting
*Body material brass or Aluminum(2V025) for option
*Port Size G1/8”,G1/4”,G3/8”,G1/2”,G3/4”,G1”
*Seal NBR,EPDM,VITON for option
*Fast respond,low noise,low consumption
ORDERING CODE |
| 2V | 170 | 15 | V | AC220V |
| Type | Aperture Flow Rate | Port size | Seal Material | Voltage |
| 2V:2V Series two position two way solenoid valve | 025:2.5mm | 06:G1/8" | Blank:NBR | DC12V |
| 08:G1/4" | DC24V |
| 130:13mm | 10:G3/8" | E:EPDM | AC24V |
| 15:G1/2" | AC110V |
| 250:25mm | 20:G3/4" | V:VITON | AC220V |
| 25:G1" | AC380V |
| Model | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 |
| Medium Motion | Air,Water,Oil |
| Pattern | Direct Drive Type | Guide Type |
| Type | Normal Close Type |
| Aperture of Flow Rate(mm) | 2.5 | 13 | 25 |
| CV Value | 0.23 | 6.2 | 23 |
|
| Port Size | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" | G1" |
| Operation Fluid Viscosity | 20 CST (Below) |
| Working-pressure | Air,Water,Oil 0.05~0.7MPa |
| Max. Pressure Resistance | 1.6 | 1 |
| Operating Temperature Range | -10~+80 |
| Voltage Range | 10% |
| Protect Class | IP65 |
| Power Consumption | AC:4.5VA DC:3W |
| Insulation | F Class |
| Material of Body | Aluminum or Brass (Nickel coated) | Brass |
| Material of Oil Seal | NBR or VITON | NBR or VITON |
| Shortest Excitation Time | 0.05 Second |
