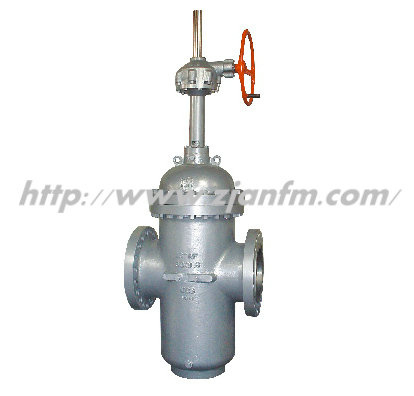

Parallel Slab Gate Valve
| Price: |
Negotiable |
| Min Order: |
1 |
Specifications
1) Parallel slide slab gate valve
2) SZ43WF(Y)-16, DN15-1, 200mm (end-flanged, without diversion hole)
Specifications:
1) Design: API 6D
2) Inspection and test: API 6D
3) Face-to-face: ANSI 16.10 / API 6D
4) Flange: ANSIB16.5 / ANSIB16.47
5) Sizes: 2" - 28"
6) Class: 150 - 2, 500lbs
7) Temperature: -29 ~ 121° C
8) Body / bonnet: WCB / 316 / 304
9) Seat: 13% Cr and PTFE / 316 and PTFE / A105 and ENP and PTFE
10) Disc: 13% Cr / 316 / A105 and ENP
11) Stem: 13% Cr/ 316 / 304
Features:
1) Hand-wheel driving parallel slide gate valve with diversion hole and
Hand-wheel driving
2) Pneumatic operated
3) Bevel gear / gear driving, and explosive-proof electro-motion driving
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Inside and Outside Gate Valve |
| Material: |
Cast Steel/ Stainless Steel/ Cast Iron |
| Connection Form: |
Flange, Thread and Welding |
Zhejiang Anneng Valve Co., Ltd. is a company with develop, exploitation, production and marketing of high-temperature high-voltage station valve. The company has advanced management mechanism and sophisticated equipment for machinery processing and examining, testing, advanced product structure, technical skills. Produce according to the Ministry of superscript, GB, the Industry Standard, and the United States, Japan, Germany, France and other countries standards.
Zhejiang Anneng Valve Co., Ltd. has always been able to reply on science and technology, continuous innovation and strict management system so that the company has set up a complete management system, Product sales, contracts, warehouse, financial, personnel efficiency of the whole company are closely united, guarantee the quality of the products strictly. The company's long-term goal is the company enters the information network, in-depth development of high temperature and high pressure valves and other valve products. The main products are valve, closing valves, Power Station Valve, ball valve, check valve, butterfly valve, the U. S. Standard valves, and other hundreds of different specifications. The main materials used WCB(A 105), WC9(F11), WC9(F22), LCB(ZGCr5Mo), ZG1Cr18Ni9Ti, ZGOCr18Ni12Mo2Ti, CF8(304), CF3(304L), CF8M(316), CF3M(316L), CF7MC20full metal, MONEL, Titanium and so on, Driver forms are: Manual, electrical, pneumatic, (spur, bevel) gear, over-type worm gear and so on. Nominal diameter: DN10mm-1200mmNPS 1/8"-40" Nominal pressure: PN0.6MPa-42MPa API 150LB-2500LB: JIS 10K-63K: Operating temperature: -196° C-600° C; Applicable medium: Water, steam, oil, nitric acid, acetic acid type, the medium-oxidation, urea, oxygen, coal gas, liquid ammonia, ethylene oxide, methanol, Acrylic, propane and so on.
Zhejiang Anneng Valve uses the quality of management, production technology and services to ensure quality assurance, return the majority of uses love of the valves with sound reputation, uses business philosophy "Quality First, the user first" continue applies of new technologies, new processes, and actively develop quality products. Welcomed the new and old customers work together for a better tomorrow!
