Pilot Operated Pressure Reducing Valve (GADp143)

Name: Pilot Operated Pressure Reducing Valve (GADp143)
Brand: Valve Industry
SKU: 768385615
Availability: InStock
Rating: 4.6 (46 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Yongjia Goole Valve Co., Ltd.

Showroom Product Company Profile

Product: GADP143 pilot operated reducing valve
Pressure Rating: 1.6- 4.0Mpa
Specification: DN15-200
Material: Steel WCB

Structural characteristic and purpose
This reducing valve is the new type pilot extra-huge membrane reducing valve developed by our company. It is greatly improved on basis of normal reducing valve. The membrane use new material, enlarging the working area, so the slight change of upper pressure or lower pressure can be fed back to membrane of main valve, and adjust the opening of main valve to ensure the constant pressure of lower stream pressure.

Main Technical Parameters And Indexes Of Performance.

Nominal pressure	PN40
Maximun design pressure(PMA)	26bar g
Maximun design temperature(TMA)	300 @ 26bar g
Minimun design temperature(TMI)	0
Maximun upstream pressure for saturated steam service(PMO)	26bar g
Maximun operating temperature(TMO)	300 @ 26bar g
Minimun operating temperature(TMIO)	0
Maximun differential pressure( PMX )	26bar
Down stream pressure range	0.2-1.7bar g, 16.0-24.0bar g
Maximum cold hydraulic test pressure	60bar g

Material Of Main Component.

Name of component	Material of component
Valve body, valve cover	WCB
Valve seat	2Cr13
valve flap	2Cr13
Valve rod	2Cr13
Membrane	Brass
Adjusting spring	60Si2Mn

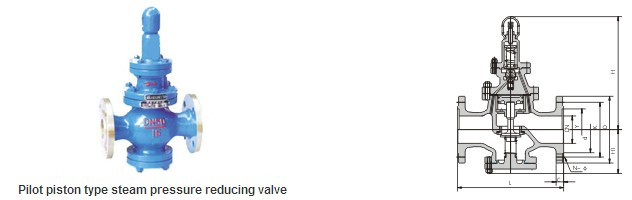

Connecting Dimensions.

DN	L	H1	H	D
15	147	221	133	185
20	154	224	136	185
25	160	235	145	207
32	180	236	156	207
40	200	238	176	255
50	230	246	183	255
65	250	295	200	320
80	310	323	230	350

Prod Model:	GADP143
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	Gadp143
Size:	1/2"-8"
Category:	Pressure Reducing Valve
Connecting Type:	Flange
Material:	C.S
Medium:	Steam,Air or Other Industrial Gas.
Working Temperature:	Below 300 Deg C
Usage:	Pressure Reducing
Application:	Steam System or Air Compressing System

Yongjia Goole Valve Co., Ltd is a specialized and modernized company. As industrial valves, filters and pipe fittings supplier and project service provider, we are willing to provide you with high quality and perfect fluid control solutions, to create a new intelligent system with high efficient, energy saving and environmental protection characteristics, so as to help you make full use of your energy.

We manufacture and offer:

Safety relief valve(Our hot products, we have price & performance advantages about safety valves, and we can offer you the best price and quality you want): Spring loaded safety valve, high pressure and high temperature safety valve, pilot operated safety valve, DIN Standard Safety Valve, etc...

Pressure Reducing Valve: Pilot Operated reducing valves, Direct Acting and Bellow Type Reducing Valves. etc.

Steam Trap: Free Float steam trap, Lever Ball Float steam trap, thermodynamic and thermostatic steam trap, inverted bucket steam trap, etc.

Besides, Other valves and pipe fittings like DIN Bellow sealed globe valves, Y Type Strainer also can be offered by us.

Our products are widely used in petroleum, chemical, metallurgy, power stationand some other fields. We can also design and manufacture the non-standard products according to Customers' requirements.

Our Products are in strict accordance with ISO 9001 International Quality Management System. We also have a complete inspection system to ensure the quality of our products. From the Market Researching to Designing and developing, from the material purchasing to furnishing, inspection and testing, from delivery to after sale service, every step is processed under the Standard Management. In order to produce the superior industrial valve and let the national-made valve replace imported valve, we always stick to the following principles: Ensure the Quality for Survival, Ensure the Continuous Innovation for Development, and ensure the high efficient service for Customers' satisfaction.

We would like to serve our esteemed customers with superior products, reasonable price and complete sales services. We pledge we will be your most reliable business partner always.
