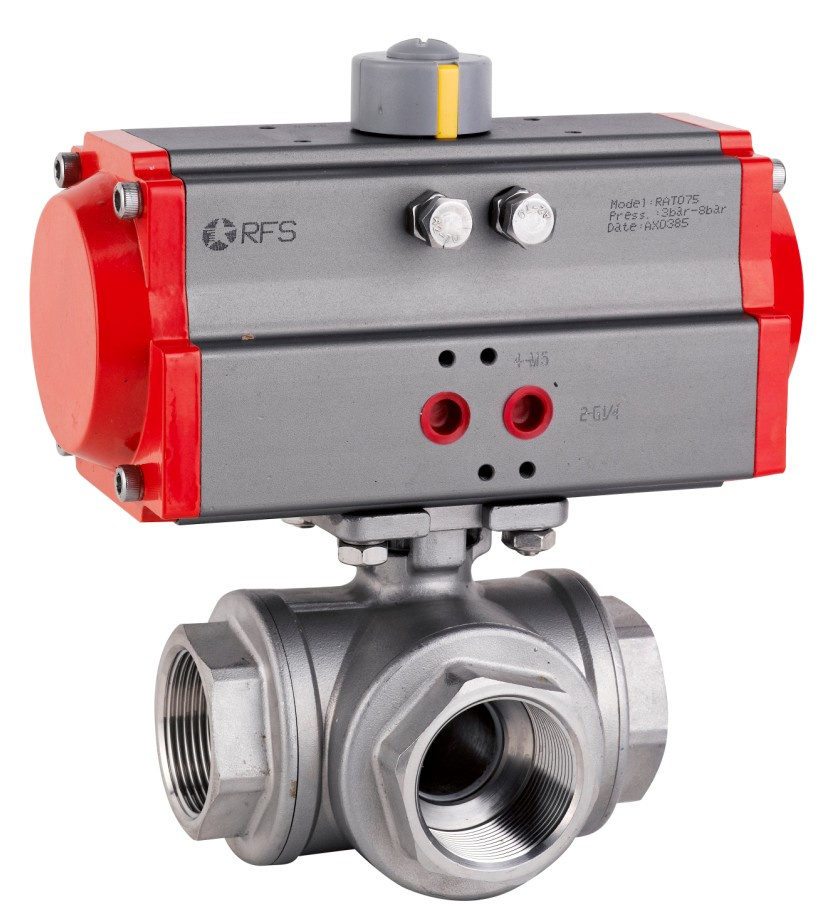

Pneumatic Actuator 3 Way Ball Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
Ball valve with Pneumatic Actuator - Three piece type
Data :
1. Screw Type:NPT.BSPT.BSP,ISO-228 CLASS A Thread
2. Temperature range : PTFE :-20~180 degree C
TMF:-50~270 degree C
RPTFE:-35~210 degree C
3. Body Material :WCB ,CF8,CF8M,TI.NI
4. Suitable Medium :Water .oil .,air and some corrosive liquid
5. Nominal Pressure :1000PSI (PN63) For 1/2'' - 4''
6. Blowout proof stem
7. Locking device
SPECIFICATION
Fire-safe design
Body meterial: CF8M,CF8,CF3M
Additive: PTFE PPL flexible graphite
FEATURES
1. Unique design and beautiful appearance
2. High platform structure and connection to ISO5211, making installation of electric/pneumatic actuator
more professional.
3. Valve body is overlaid with reinforced bar, it can be permanently used in caustic media ,keep itself from
cracking and avoid the failure of parts of valve during installtion.
4. Grinding process of valve stem to reduce the moment of electric/pneumatic valve during assembly and
make it runmore flexible.
5. The body of carbon steel ball valve is phosphate coated, no fade ,rustless , durable and beautiful.
If you need more information .please contact with me freely
| Prod Model: |
RBVP14-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Water Industrial Usage |
The company is located at Xikou, Fenghua, Which is a state scenic spot. The company grew out of Xikou Shuangbo Electronic Element Factory. It is specialized in production of magnet coil and special solenoid valves and accessories of electric appliances with more than 10 years of experience from 1990. The company has excellent production facilities and testing devices, with strict delivery inspection. It has passed ISO9001 quality system certification. Part products have gained CE mark and safety mark. The products have been applied to several hundred pneumatic, hydraulic and electric appliances industries, and new items are developed for many companies. They are well received by cutomers.
The company takes science and technology as backbone and seeks development by quality and reputation. It will treat sincerely every old and new customers with its good quality products and reasonable prices and best services.
