| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |

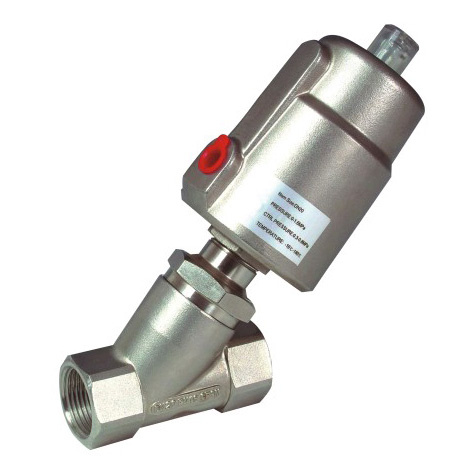

Angle seat valve
Design Character :
1. Can see the position indication
2. Easy to install
3. Actuator adopt low abrasion piston structure ,big capacity and low wastage
4. There is lubricative for inner parts ,no need maintenance
5. The actuator material have stainless steel and aluminum
6. Long life for the piston pole ,PTFE seal ,avoid the reif come in.
7. No water hammer affect ,when the liquid flowed from valve underside ,the water hammer will be absorbed
Specification :
Viscidity :max. 600mm2 / S
Installation :any position
Controlling Medium :Air or Neutral Gas
Controlling Pressure range :0.3 ~ 1Mpa
Liquid Working Pressure :0 ~ 1.6 Mpa
If you need more information .Please kindly contact with me .
| Prod Model: | RJQ22 Series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Orifice: | 58mm |
| Thread: | G2-1/2'' |
| Valve Material: | Ss316 ,Brass |
| Actuator Material: | Aluminum / Ss / Plastic |
| Actuator Size: | Optional |
| Valve Core Seal: | PTFE |
| Valve Stem Seal: | PTFE / FKM |
| Applicable Medium: | Water,Liquid ,Natural Gas ,Water Steam ,Slight Cor |
| Medium Temp: | -10~180 Degree |
| Environment Temp.: | -10 ~ 60 Degree |
| Usage: | Heating Pipeline |
| Connection Form: | Many Places and Usage |
