Two-piece Body, Floating Ball, Buint-in ISO5211 direct mounting pad
Full silicasol technology
Full or Reduced bore, Blowout Proof Stem
Fire safe and Anti static
Anti-static devices for ball-stem body
Double stem sealing to comply with TA-LUFT requirements
Pre-Load 2 belleville washer to self-adjust packing
Stainless steel ball

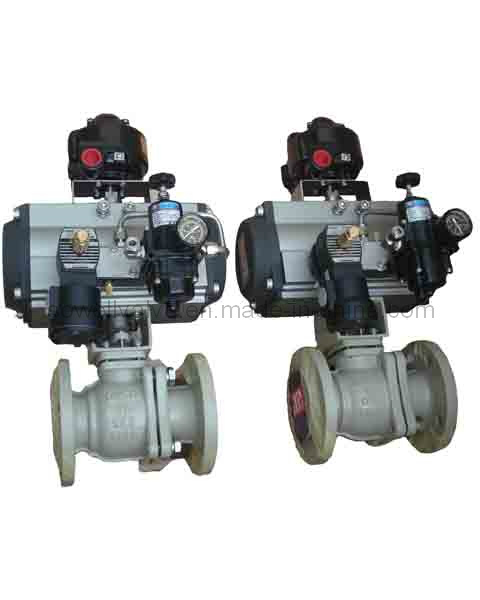

Pneumatic ball valve.
Design & manufacture standard: API6D, API608, ANSI/ASME B16.34, MSS-SP-72
Face to face dimensions: ANSI/ASME B16.10, API6D.
Flange connection: ANSI/ASME B16.5 for NPS24, ASME B16.47A/MSS SP-44 for NPS>24.
Butt-welding end dimensions: ANSI/ASME B16.25.
Inspection & test standard: API598, API6D.
Pressure: 150Lb, 300Lb, 600Lb, 900Lb or PN 2.0MPa~PN 15.0MPa or JIS 10K, 20K.
Nominal diameters: 1/2~ 24"or DN15~DN600.
Major materials: WCB, WC1, WC6, WC9, A105, CF8(304), CF8M(316), CF3(304L), CF3M(316L), etc.
Driving options: Manual/electric/worm wheel, etc.
Fire-resistant & anti-static design.
WCB CF8(304) CF3(304L) CF8M(316) CF3M(316L)
ANSI Main appearance and connection size
Class 150
DN(inch) Φ D L Φ E Φ B Φ C T f N-Φ H H H1 W M P A1 A2 B1 B2
1/2" 13 108 89 60.5 35 11.5 1.6 4-16 48.79 135 9 9 6 6 36 42
3/4" 19 117 98 70 43 11.5 1.6 4-16 53 84 135 9 9 6 6 36 42
1" 25 127 108 79.5 51 12 1.6 4-16 64 95 170 11 11 6 7 42 50
1-1/4" 32 140 117 89 64 13 1.6 4-16 71 103 170 11 11 6 7 42 50
1-1/2" 38 165 127 98.5 73 15 1.6 4-16 76 111 200 14 14 7 9 50 70
2" 51 178 152 120.5 92 16 1.6 4-19 85 120 200 14 14 7 9 50 70
2-1/2" 64 190 178 139.5 105 18 1.6 4-19 104 153 300 17 17 9 11 70 102
3" 76 203 190 152.5 127 19 1.6 4-19 114 163 300 17 17 9 11 70 102
4" 102 229 229 190.5 157 24 1.6 8-19 140 182 400 22 22 non 11 non 102
5" 127 356 254 216 186 24 1.6 8-22 183 260 500 27 27 14 non 125 non
6" 152 394 279 241.5 216 26 1.6 8-22 202 280 800 27 27 14 non 125 non
8" 203 457 343 298.5 270 29 1.6 8-22 253 - 1100 27 27 14 non 125 non
Class 300
DN(inch) Φ D L Φ E Φ B Φ C T f N-Φ H H H1 W M P A1 A2 B1 B2
1/2" 13 140 95 66.5 35 16 1.6 4-16 48.79 135 9 9 6 6 36 42
3/4" 19 152 117 82.5 43 16 1.6 4-19 53 84 135 9 9 6 6 36 42
1" 25 165 124 89 51 18 1.6 4-19 64 95 170 11 11 6 7 42 50
1-1/4" 32 178 133 98.5 64 19 1.6 4-19 71 103 170 11 11 6 7 42 50
1-1/2" 38 190 156 114.5 73 21 1.6 4-22 76 111 200 14 14 7 9 50 70
2" 51 216 165 127 92 23 1.6 8-19 85 120 200 14 14 7 9 50 70
2-1/2" 64 241 190 1495 105 26 1.6 8-22 104 153 300 17 17 9 11 70 102
3" 76 283 210 168.5 127 29 1.6 8-22 114 163 300 17 17 9 11 70 102
4" 102 305 254 200 157 32 1.6 8-22 140 182 400 22 22 non 11 non 102
5" 127 381 279 235 186 35 1.6 8-22 183 260 500 27 27 14 non 125 non
6" 152 403 318 270 216 37 1.6 12-22 202 280 800 27 27 14 non 125 non
8" 203 502 381 330 270 42 1.6 12-25 253 - 1100 27 27 14 non 125 non
