Overview:

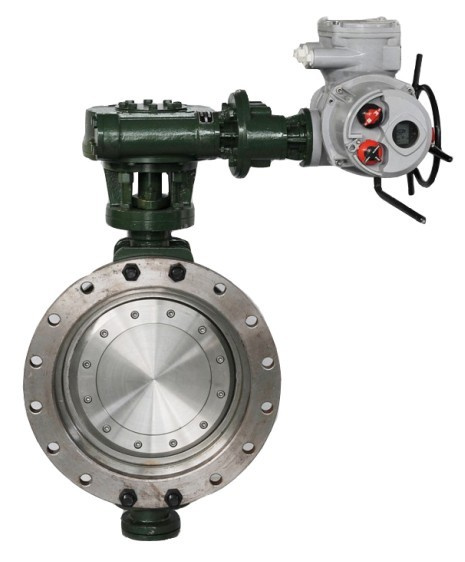

Pneumatic control butterfly valve widely used in petrochemical, chemistry, metallurgical,
Electricity etc, control medium like gas, fluid, steam etc, mostly used in strict leakages.
More Type: 150Lb, 300Lb, 600Lb, 900Lb, 1500Lb, 2500Lb, etc
More Standard: ANSI, DIN, JIS, GB, etc
More Structure: Three dimensional eccentric type
No eccectric type
Feature:
1. Smal open-torque, flexibel and convenient, labor-saving and energy-saving.
2. Three dimensional eccentric structure makes butterfly plate more tightly, and its reliable seal performance achieve no-leak.
3. High pressure, corrosion resistance, wear resistance and long service life, etc.
|
Valve Size |
H1 |
H2 |
A |
L |
Approximate Weight(kg) |
|
inch |
mm |
Lug |
Wafer |
flanged (Short Pattern) |
Lug |
Wafer |
Flanged |
|
3" |
80 |
157 |
239 |
45 |
48 |
48 |
114 |
17 |
15 |
22 |
|
4" |
100 |
179 |
280 |
45 |
54 |
54 |
127 |
19 |
17 |
25 |
|
6" |
150 |
194 |
310 |
45 |
57 |
57 |
140 |
30 |
27 |
39 |
|
8" |
200 |
230 |
330 |
75 |
64 |
64 |
152 |
37 |
33 |
48 |
|
10" |
250 |
280 |
380 |
80 |
71 |
71 |
165 |
50 |
45 |
65 |
|
12" |
300 |
310 |
450 |
100 |
81 |
81 |
178 |
81 |
69 |
100 |
|
14" |
350 |
340 |
500 |
110 |
92 |
92 |
190 |
96 |
86 |
125 |
|
16" |
400 |
365 |
510 |
110 |
102 |
102 |
216 |
137 |
122 |
177 |
|
18" |
450 |
436 |
640 |
135 |
114 |
114 |
222 |
158 |
141 |
205 |
|
20" |
500 |
450 |
660 |
150 |
127 |
127 |
229 |
214 |
191 |
277 |
|
24" |
600 |
530 |
820 |
170 |
154 |
154 |
267 |
291 |
260 |
377 |
|
28" |
700 |
600 |
903 |
170 |
165 |
165 |
292 |
426 |
380 |
551 |
|
30" |
750 |
630 |
930 |
170 |
190 |
190 |
318 |
616 |
550 |
798 |
|
32" |
800 |
696 |
967 |
175 |
190 |
190 |
318 |
728 |
650 |
943 |
|
36" |
900 |
760 |
1105 |
175 |
203 |
203 |
330 |
930 |
830 |
1204 |
|
40" |
1000 |
830 |
1175 |
175 |
216 |
216 |
410 |
1176 |
1050 |
1523 |
|
42" |
1050 |
860 |
1210 |
175 |
229 |
229 |
410 |
1344 |
1200 |
1740 |
|
48" |
1200 |
960 |
1320 |
200 |
254 |
254 |
470 |
1568 |
1400 |
2030 |
