Application
Globeoranglevalveforcryogenicapplications· Easytoservice
Thanks to top-entry design
Nominal size DN 25 to 150
Nominal pressure PN 16 to 100
Temperature range 273 to +220 ° C

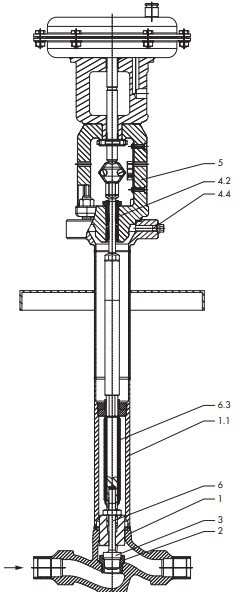

The Type 3248 Cryogenic Valve is especially designed to meet The requirements of cryoengineering.
Standard metal bellows to meet strict emission requirements
Minimizedheatleakthankstotheuseofabellowssealanda
Cryogenic extension bonnet
Valve body available in globe or angle styles
Installation in vacuum-insulated pipelines, air separation
Plants and peripheral plants made possible by a cover plate On the cryogenic extension bonnet Valve maintenance possible without removing it from the Pipeline
Topentrythroughthecryogenicextensionbonnetallowseasy Accesstotheseat, plugandbellowsafterremovaloftheactu-ator
The Kvs coefficients can be modified in wide ranges by re-placing the seat and valve plug.
Shanghai ThinkTank Process Management Co., Ltd. is the sole production and R&D institute of Taiwan STONE Company in Mainland China. ThinkTank entered Chinese market in 2002 and moved from Hangzhou to Shanghai headquarter in 2012. Based on over 30 years experience in researching and manufacturing automatic instruments, brining in overseas advanced technology and combining domestic users real working situation, ThinkTank is specialized in producing new typed self-regulating valves, control valves and various kinds of automatic instruments. ThinkTank's business includes engineering projects such as electricity, metallurgy, petrochemical processing, light industry and building materials, municipal water service and natural gas.
Enterprise history
1985.08 Taiwan STONE company was established in Taipei city.
1990.02 Sales network covered Southeast Asia.
2002.06 Branch office was fund in Hangzhou, Zhejiang, handling all business in China
2012.10 Mainland head office was moved to Pudong, Shanghai
Shanghai ThinkTank Process Management Co., Ltd. Has a professional team works for control valves design and engineering application. ThinkTank develops a series of hi-tech products after absorbing overseas advanced technology and innovating.
*New self-regulating, micro pressure, differential pressure, flow, temperature control valve
*New pneumatic (electric) linear actuator (low dB, high pressure) control valve
*Pneumatic (electric) rotary actuator (O/V ball, butterfly) control valve
*Pneumatic (electric) special corrosion resisting control valve
Shanghai ThinkTank Process Management Co., Ltd sticks to the policy of "client oriented, quality comes first, and faith is root". Depending on many years experience on engineering application in various industries, ThinkTank provide clients with good, reliable full service, focusing on maximizing the rate of return on investment for clients.
