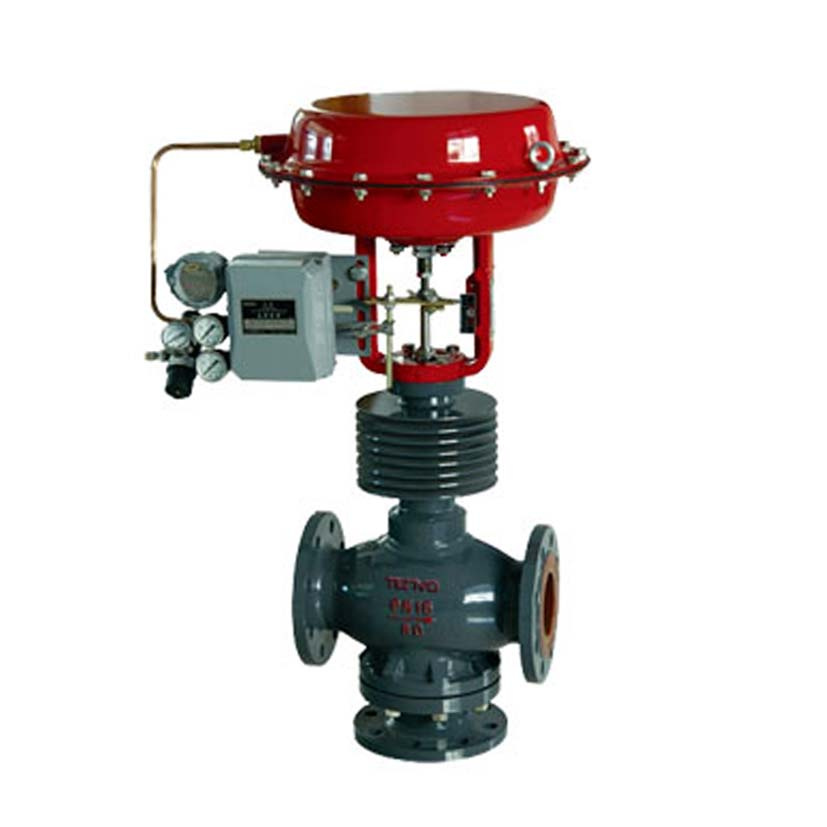

Detailed Product Description: Design As Per: IEC 534-4-1976
Face to Face As Per: ASME B16.10
Flange Dimensions As Per: ASME B16.5
Test & Inspection As Per: IEC 534-4-1976
Size: 1/2"~12"
Material: WCB, CF8, CF8M
Pressure Rating: 150#~600#
Construction: Single Seated, Cage Guide, Double Seated
Flow Characteristic: Linear, Equal Percentage, Quick Open
Body
Type: Single-seat \Two-seat\Cage-type\Off-type
Material: Cast iron\Carbon Steel \Stainless Steel \Hastelloy
Connection type: Flange(FF RF). Welding
Pressure Range: JIS 10K, 20K, 30K, 40K, ANSI CLASS150, 300, 600
DIN PN10, PN16, PN25, PN40
Upper Bonnet: : Standard (-17C~+210C)
Thermal-type (-20C~+300C)
Elongation shaped(-196C~+280C)
Bellows-type(-196C~+350C)
Gland Packing: : V type Teflon, graphite
Gasket: Teflon, nylon, SS304, graphite, SS316
Orientation: Top-oriented, top and bottom of the wizard.
Trim:
Valve Stem: SS304, SS316, SS316L
Valve plug: Single-seat, two-seat, cage type.
Valve plug characteristic: Equal percentage, line- type, switch-type.
Material: SS304, SS301, SS316L, SS440C, Hastelloy C. B
Actuator:
Type: Single-acting diaphragm cylinder
Diaphragm Material: Neoprene with fabric insert
Air pressure: 1.4~3.2kgcm2
Spring range: 0.2~1.0kg/cm2, 0.4~2.0kg/cm2, 0.6~2.2kg/cm2, 0.8~2.4kg/cm2
Temperature Range: -20C~+70C.
Intake Pipe Connection: 1/4'' Thread
