| Price: | US $ 9.9-1999/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

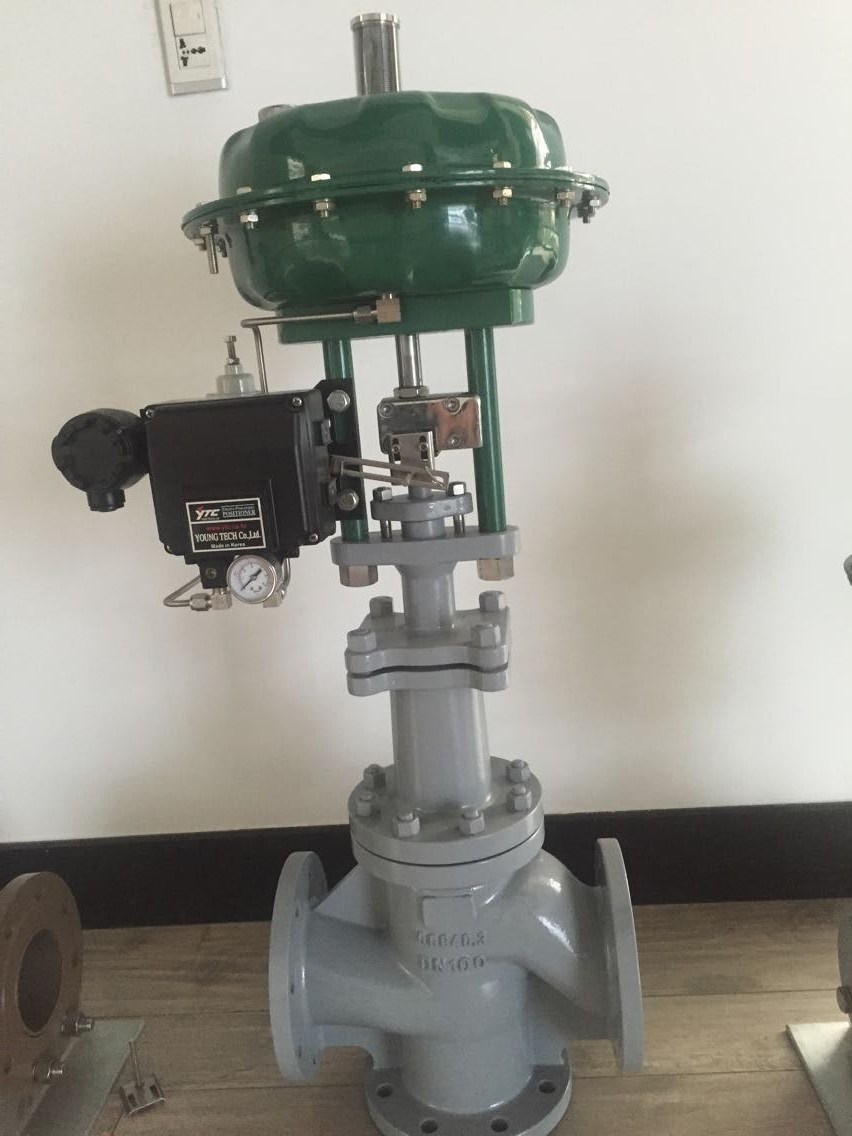

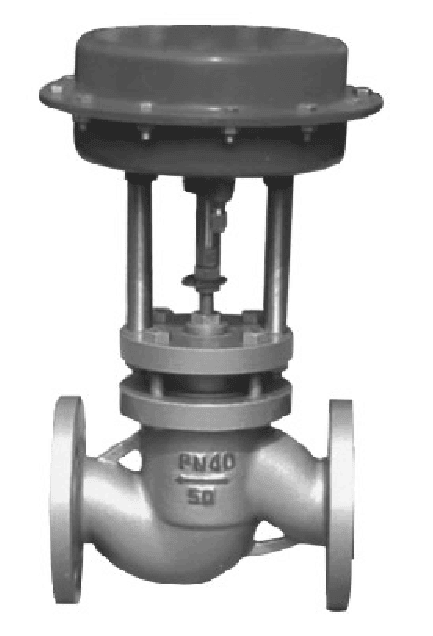

1 Overview: pneumatic film cut off valve, pneumatic unit is the unit of the instrument in the execution unit. Has the advantages of simple structure, large operation force, small size, light weight, small flow resistance, large capacity, good sealing performance, convenient maintenance and so on. Widely used in petroleum, chemical, metallurgy, electric power, automation control system in the production process of textile etc.
2 Standard Accessories: air filter regulator, solenoid valve, valve position return.
3 materials:
Valve body:WCB,ZG1Cr18Ni9Ti
Plug Sleeve:1Cr18Ni9Ti,0Cr18Ni12Mo2Ti
Valve Spool/Seat:1Cr18Ni9Ti,0Cr18Ni12Mo2Ti
4 Main Technical parameters:
DN(mm): 15--200,
PN(KPa): 1.6, 6.4
Signal pressure(KPa): 200,
Rated flow coefficient (Kv): 5,8,12,17,29,43,70,110,165,275,440,690.
Rated stroke(mm): 8,12,20,25,40,50.
5 Ordering instructions:
The product model, 2. Nominal diameter, 3. The nominal pressure, 4, Suitable medium, 5. Medium temperature, 6. The material of Valve Body and core, 7. The Allowable differential pressure, 8. The attachments.
| Prod Model: | ZMAQ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dn: | 15--200 |
| Pn: | 1.6, 6.4 |
| Body: | Wcb,Zg1crni9ti |
| Actuator: | Pneumatic |
| Connection: | Flanged Diaphragm Valve |
| Function: | Intelligent Type |
| Standard: | ANSI |
| Material: | Wcb,Zg1crni9ti |
| Structure: | Pneumatic Diaphragm Cut-off Valve |
| Pressure: | 1.6 6.4MPa |
