Belows are the details of Forged Steel Fixed-Type Ball Valve made by our company:
1. Technical SpecifitionsMetal to metal seal (spray weldingNi60),equipment for grinding, artificial fine grinding, causes the valve to achieve high standards,zero leakage.

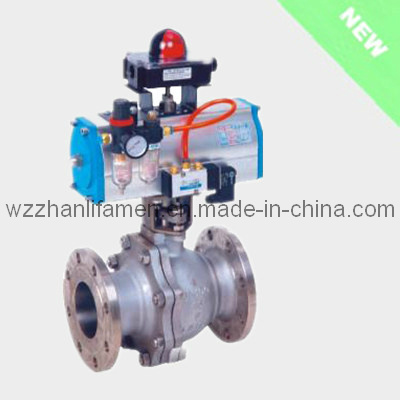

The main advantages of Q647Y pneumatic Hard seal ball valve
(1)Full bore ball valve havs little flow resistance.
(2)Simple structure, small volume, light weight.
(3)There are two sealing surfaces, and the materials of sealing surface has been widely used various of plastic at present, it performance well in sealing,and the valve can be completely sealed.It has also been widely used in the vacuum system.

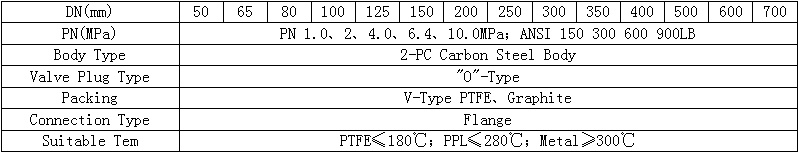

2.Main Technical Parameter and Performance

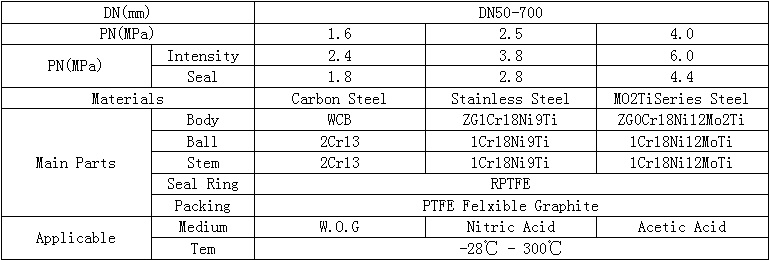

3. Main Parts Materials and Technical Standard

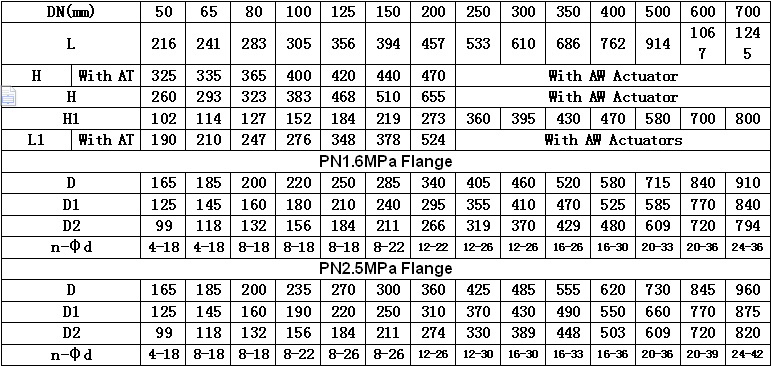

4.Sizes and Dimensions
If this product interests you, please feel free to contact with us!
Quality First and Reputation Uppermost!
Wenzhou Zhanli Valve Co., Ltd. Located in the famous valves & pumps hometown "Oubei town, Wenzhou". We are the advanced valve manufacturer with valve designing & developing, manufacturing, sales, and after-sale services.
We mainly produce steam system valves & equipments. For years, we are devoting ourselves to the domestic sales and export businesses, strictly controlling the quality. We insist on "Quality First and Reputation Uppermost" and obtained the trust & approval from most of our domestic & foreign customers.
Our main products and services are: DIN Valve Series, such as: DIN Gate Valves, DIN Globe Valves, DIN Check Valves, DIN Y Type Strainers, DIN Bellows Seal Gate Valves, DIN Bellows Seal Globe Valves. API Valve Series, including: API Gate Valves, API Globe Valves, API Swing Check Valves. Forged Steel Gate, Globe and Check Valves. Steam Trap Series, including: Free Float Steam Traps, Ball Float Steam Traps, Thermodynamic Steam Traps, Inverted Bucket Steam Traps and Thermostatic Steam Traps …
We purchased advanced machines & equipments, employed a qualified & skillful technical workers.
Welcome to inquire us. We will do our best to give you the best services!
