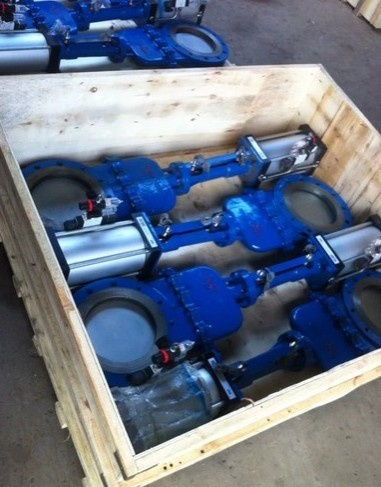

Pneumatic knife gate valve is a kind of complicated automatic control instrument consisting of a variety of pneumatic elements and valve body. It is suitable for situations requesting quick cutting or opening.
Double-action type: Two-position control for valve switching on and off.
Single-action type (spring reset): The valve switches on/off automatically when power supply or air supply is cut off or there is any failure.
Optional accessories
1. Single-control or double-control solenoid valve (24V, 220V, etc. Optional voltage; Explosion-proof solenoid valve is optional when necessary)
2. Proximity switch
3. Air supply processing triple-connection unit (including air reducing valve, filter, and atomized lubricator)
4. Electric/pneumatic valve positioner (for regulating type use)
|
DN |
L |
D |
D1 |
n-d |
H |
a×a |
|
mm |
in |
|
50 |
2 |
48 |
165 |
120.5 |
4-19 |
547 |
80×80 |
|
65 |
21/2 |
48 |
180 |
139.5 |
607 |
|
80 |
3 |
50 |
195 |
152.5 |
632 |
100×100 |
|
100 |
4 |
50 |
218 |
190.5 |
8-19 |
742 |
115×115 |
|
125 |
5 |
57 |
255 |
216 |
8-22 |
820 |
145×145 |
|
150 |
6 |
57 |
280 |
241.5 |
900 |
|
200 |
8 |
70 |
342 |
298.5 |
1130 |
220×220 |
|
250 |
10 |
70 |
402 |
362 |
12-25 |
1252 |
|
300 |
12 |
76 |
480 |
432 |
1480 |
270×270 |
|
350 |
14 |
76 |
530 |
476 |
12-29 |
1643 |
|
400 |
16 |
89 |
594 |
539.5 |
16-29 |
1776 |
|
450 |
18 |
89 |
635 |
578 |
16-32 |
1970 |
|
500 |
20 |
114 |
680 |
635 |
20-32 |
2157 |
340×340 |
|
600 |
24 |
114 |
805 |
749.5 |
20-35 |
2476 |
