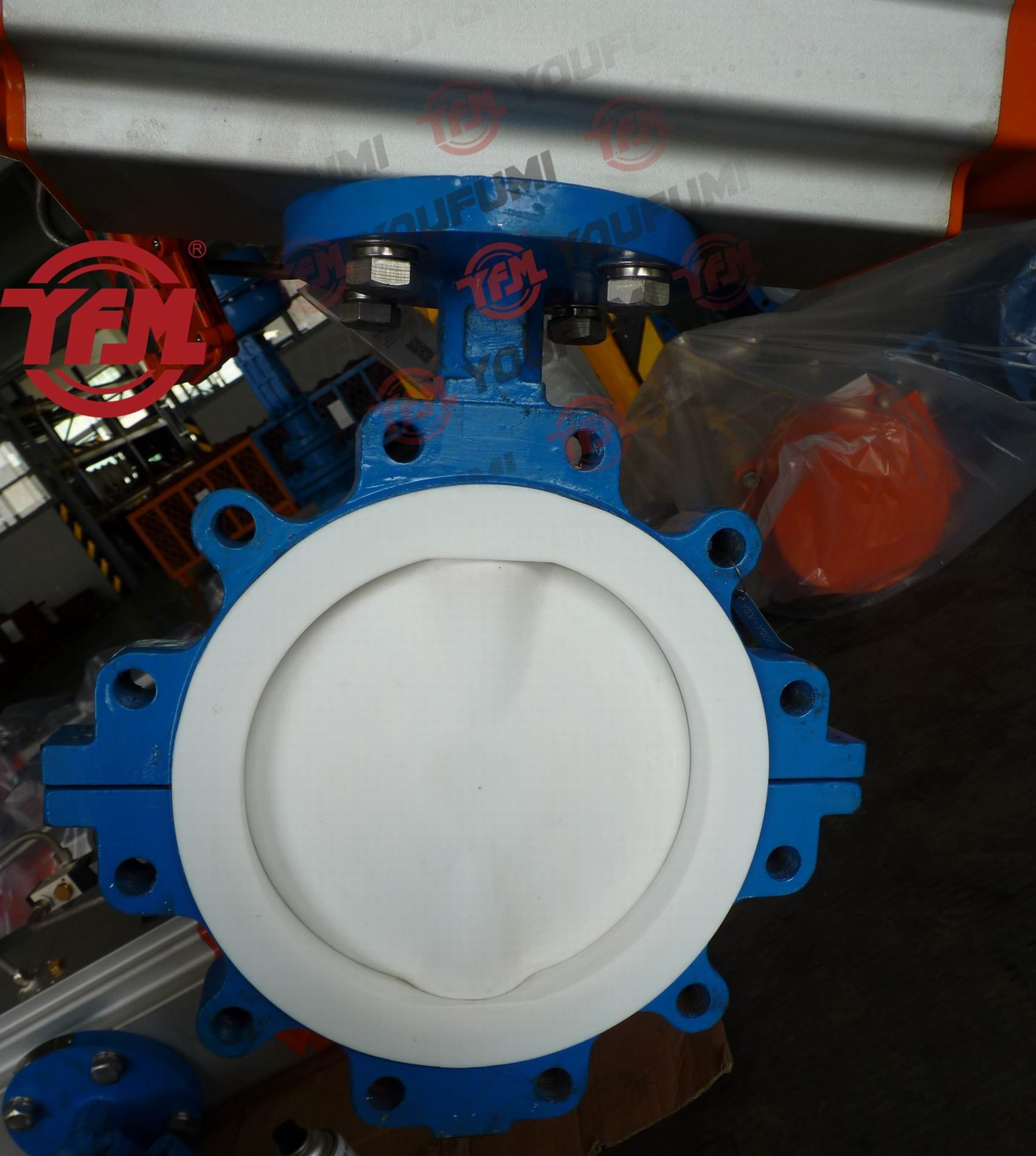

Pneumatic Lug type butterfly valve with PTFE seat
Technical Specification
Design and Manufacture Standard: ASME B16.34, HG/T 3704
Face-to-face Dimension: ASME B16.10 , GB/T 12221
Flange Standard: ASME B 16.5 ,GB/T 9119 ,DIN ,JIS
Inspection and Testing: API 598, GB/T 13927
Product Specification
Body Material: WCB, ASTM A395 , CF8 ,CF8M
Lining Material: PTFE , PFA , PO ,FEP, EPDM
Nominal Diameter: 2"-80"(DN50~DN2000)
Pressure Range: Class150 , PN6 , PN10 , PN16
Connection Type: Flange ,Wafer , Lug Connection
Operation Method: Manual ,Worn gear ,Electric ,Pneumatic actuator
Products Description
1.The lined butterfly valves bi-directional flow is possible at maxmium operating pressure. Since the valve port corresponds to the piping diameter, a high flow capacity is guaranteed.
2.It features ease of maintenance, repeatable on-off, long life durability.
3.The concentric design is commonly used in the power generation, brewing, water and food industries and suitable for both gaseous and liquid service. Typically applied in chemical/petrochemical process, food and beverage, and pulp and paper etc.
4.Lining material: PTFE, PFA, FEP, GXPO etc.
5.Connection type: wafer, flange, lug etc.
6.Operation methods: manual, worm gear, electric, pneumatic and hydraulic actuator.
7.Youfumi lined three-way ball valves are available as per the needs of applications in additional sizes and other than standard materials.
We have more than 10,000 pcs on stock, which can be delivery in time and suit for project.
Warmly welcome to visit our company.
| Prod Model: | TD671PTFE |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | Dn50~2000 |
| Medium: | Corrosion Medium |
| Material: | Wcb+PTFE |
| Actuator: | Pneumatic |
| Work Pressure: | Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: | Soft Sealed |
| Connection Form: | Lug Support |
| Structure: | Centre Sealing |
| Seal Form: | Auto Sealed |
| Working Temperature: | Medium Temperature (',120??C |
| Application: | Industrial Usage |
