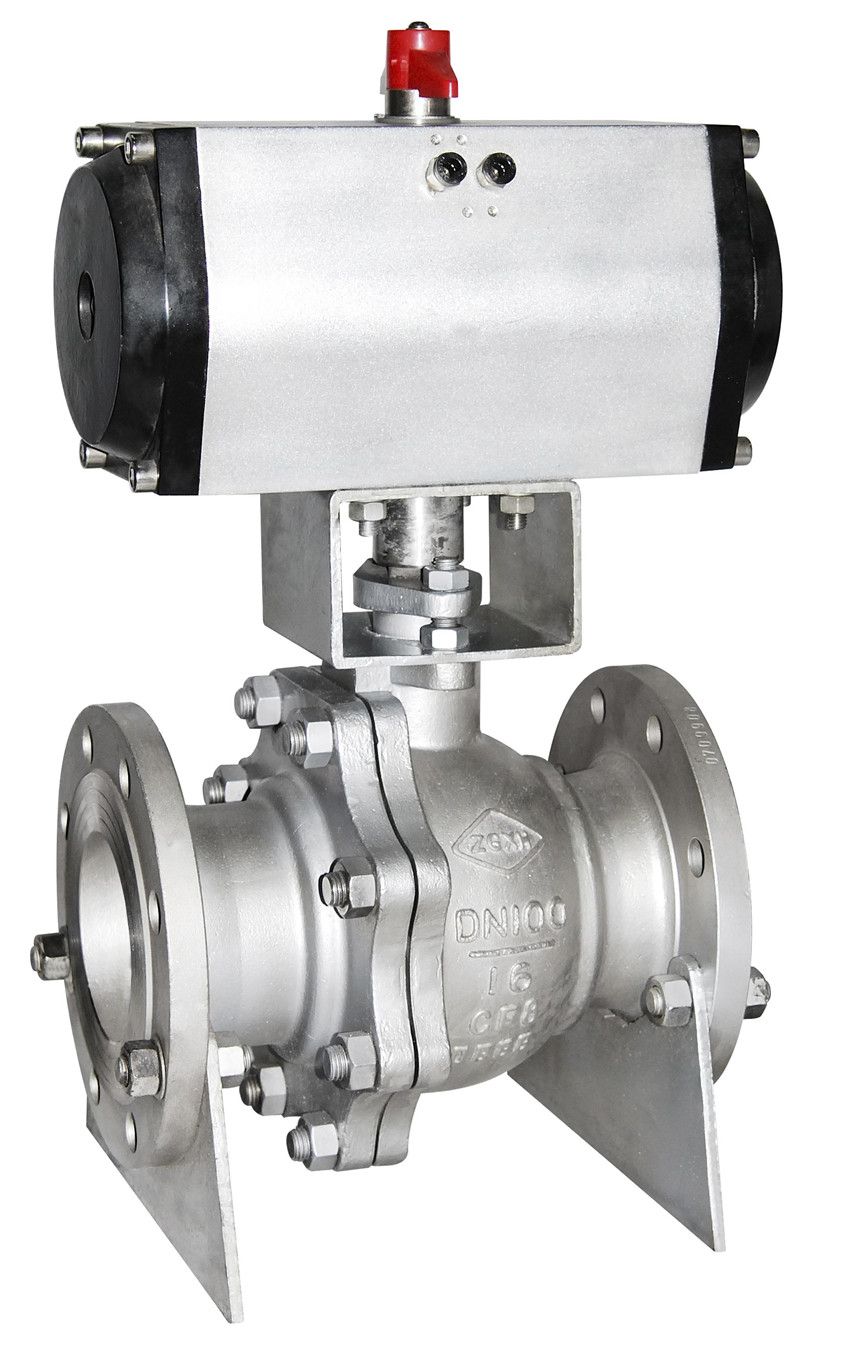

Pneumatic Stainless Steel Ball Valve (Q641F)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Specification:
Design and manufacturing: API608, API6D, JPI7S-48, BS5351, DIN3357
Flange size: ANSI B16.5, JIS B2212~2214, DIN2543
Structure length: ANSI B16.10, JIS B2002, DIN3202
Test standard: API 598, API 6D, ISO 5208, BS 6755
Fire Safe: API 607, API F6A
Anti-Corrosion Material: NACE MR-01-75
Standard Materials:
Size: NPS 1/2"- 8"
Pressure: Class 150-600
Body: CF3, CF3M, CF8, CF8M
Ball/Stem: 304 /316
Seats: RTFE /RPTFE /NYLON
Seals: PTFE/Graphite
|
Parts Name |
Carbon Steel to ASTM |
Stainless Steel to ASTM |
|
|
Body |
A105/WCB |
A352 LCB |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
|
Bonnet |
A105/WCB |
A352 LCB |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
|
Ball |
A105+ENP |
F316/F304 |
F304/ F316 |
F304/F316 |
F316 |
F304L/F316L |
F316L |
|
|
Stem |
F6a |
F316/F304 |
F304/ F316 |
F304/F316 |
F316 |
F304L/F316L |
F316L |
|
|
Bolt |
B7 B7M |
B7 B7M |
B8 B8M |
B8 B8M |
B8 B8M |
B8 B8M |
|
|
Nut |
2H 2HM |
2H 2HM |
8 8M |
8 8M |
8 8M |
8 8M |
|
|
Gasket |
PTFE 304+Graphite |
PTFE 304+Graphite |
PTFE 316+Graphite |
PTFE 304L+Graphite |
PTFE 316L+Graphite |
|
|
Seat |
PTFE RPTFE NYLON |
| Prod Model: |
Q641F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"~8" |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Water Industrial Usage |
Zhejiang Xinhai Valve Manufacturing Co., Ltd, located in Oubei, Wenzhou city, was established in 1986. with more than 20 years experience, our company now becomes a professional valve manufacturer by developing, manufacturing, marketing and servicing. And it covers an area of 10, 000 square meters and has two subsidiary factories.
Our product includes gate, check, globe, ball, butterfly, plug, strainer and other valve. The valves are manufactured according to ANSI, API, DIN, GOST, BS, JIS, Chinese GB standers and the customers' requirements. These products have been installed throughout the world, having a wide variety of applications in the Gas, Oil, Refining, Chemical, Marine, Power Generation and Pipeline Transmission Industries.
Pressure range: Class125-Class2500, PN6-PN420
Size range: NPS1/2-NPS48
Operation type: Manual, gearbox, chain wheel, pneumatic, electronic, etc
Connection End: Flanged, BW, SW, NPT, wafertype, etc.
Materials(casting): WCB, WCC, LCB, LCC, LC1-3, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC5, WC6, WC9, Monel, etc.
In order to introduce the international quality management system, Xinhai have got the approval o ISO 9001, API-6D, CE and Chinese TSG certification. Also, Xinhai established a multi-functionl phys-chemical lab to futher supervise the quelity time to time and fittde out spectrum analyzer, portable spectrograph(PMI), impact tester, hardness meter, tensile tester, thickness meter, magnetic particle tester, gugitive emission tester and NDE testing equipment.
The main target of Xinhai is to offer a high quality products and service to ensure the highest degree of satisfication and fidelity of our customers. Welcome the new and old customers to cooperate with Xinhai to explore wider global markets and create more brilliant future together!
