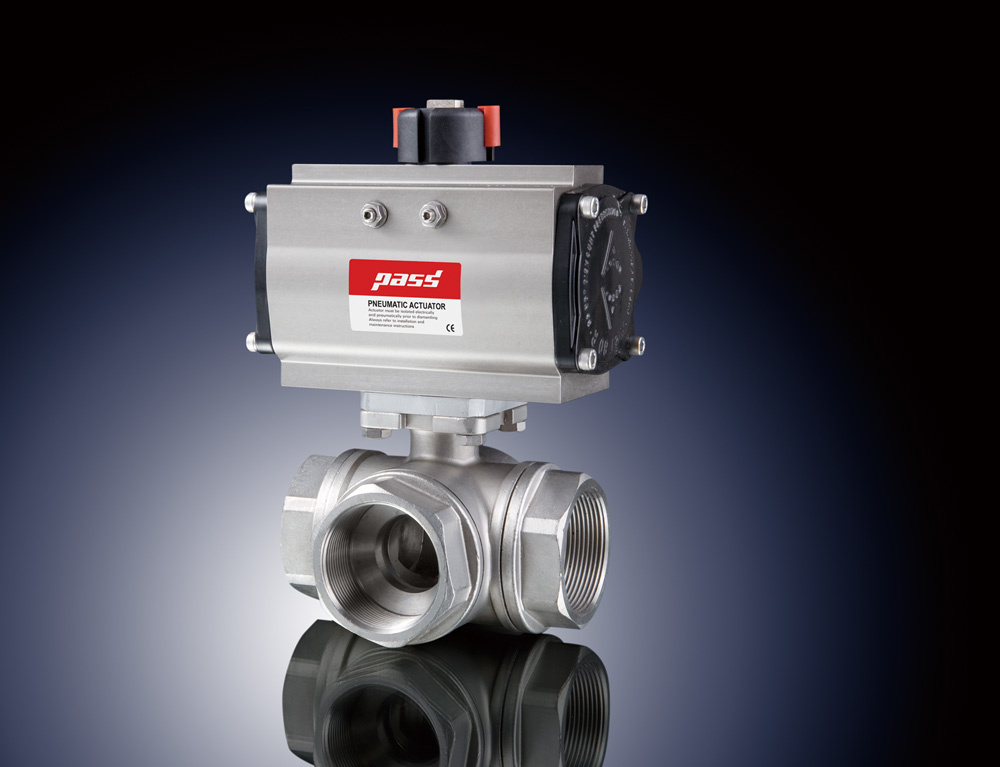

DESIGN FEATURES:
Investment Castings for Body and End caps
Various Thread Standards are Available
Built-in ISO 5211 Mounting Pad for Easy Automation
Anti-static Devices for Ball-stem-body
Blow-out Proof Stem
Double Stem Sealing to Comply with TA-LUFT Requirements
Positive Position Location at 90°Increments
Locking in Every 90°Increment
APPLICABLE STANDARDS:
Design:ASME B16.34,API 608
End Flange:ASME B16.34 Class 400
Pipe Thread:ASME B1.20.1,BS21,DIN 2999/259,BSPISO7/1,ISO 228/1 JIS B 0203
Inspection & Testing: API 598,EN 12266
SPECIFICATIONS:
Working Pressure :1000psig at 100°F(38°C)
Temperature Range:-50°F to 350°F(-46°C to 177°C)
|
Diameter |
Size(mm) |
|
mm |
inch |
PN |
D |
L |
H1 |
Double acting pneumatic |
Single acting pneumatic |
Electric |
|
H2 |
A1 |
H2 |
A2 |
H2 |
A3 |
|
15 |
1/2 |
25 |
12.7 |
64 |
42 |
96 |
145 |
96 |
195 |
105 |
72 |
|
20 |
3/4 |
25 |
16 |
76 |
49 |
96 |
145 |
96 |
195 |
105 |
72 |
|
25 |
1 |
25 |
20 |
87 |
59 |
115 |
158 |
115 |
217 |
124.5 |
160 |
|
32 |
1-1/4 |
25 |
25 |
96 |
65 |
115 |
158 |
115 |
217 |
124.5 |
160 |
|
40 |
1-1/2 |
25 |
32 |
114 |
73.2 |
137 |
177 |
137 |
258 |
124.5 |
160 |
|
50 |
2 |
25 |
38.1 |
142 |
82.5 |
137 |
177 |
137 |
258 |
124.5 |
160 |
