Valve body made of:
Cast iron (DIN version only)
Cast steel or cast stainless steel

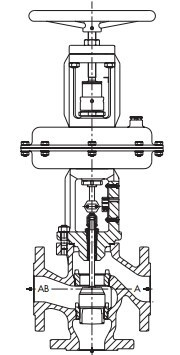

Principle of operation (figs. 3 and 4)
Depending on the valve version, the three-way valve can be used for either mixing or flow-diverting service.
In mixing valves, the process media to be mixed enter at valve ports a and b. The combined stream flows off at port ab (see fig. 3). The flow rate from port a or b to port ab depends on the cross-sectional area of flow between the seats and the valve plugs.
In flow-diverting valves, in contrast, the process medium enters at port ab and the partial streams flow off at ports a and b (seefig. 4).
Note: The design of the mixing and flow-diverting valves in sizes dn 15 to 25 (nps ½ To 1) is identical.
Fail-safe position depending on the arrangement of the compression springs in the actuator (see data sheet t 8310-1 en for details), the valve has two fail-safe positions which become effective upon supply air failure:
Actuator stem extends (fa)
Whenever the air supply fails, either port b (mixing valve) or port a (flow-diverting valve) is closed.
Actuator stem retracts(fe) whenever the air supply fails, either port a (mixing valve) or port b (flow-diverting valve) is closed.
