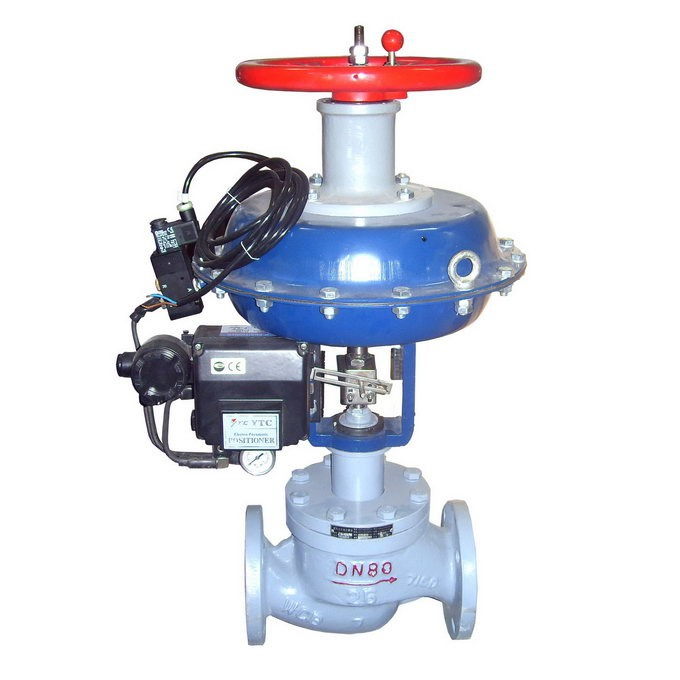

Single seated cage guided control valves with large Cv valve, and dynamic stability is suitable to variety of heavy duty services. This service is characterized by pressure balanced type trim for very high pressure drops. For those severe fluid conditions that cannont be covered by this series, please select multi-hole type or low-noise labyrinth control valves.
Standard Specifications
Series: 100C ( Single seated cage guided control valves )
Body size: 1.5B~18B(DN40~450)
Body ratings: ANSI 150#, 300#, 600#, 1500#, 2500#;
JIS 10K, 20K, 30K, 40K;
JB/T79-94 PN1.6, PN4.0, PN6.3, PN10.
Body Material: WCB, CF8, CF8M, etc.
Characteristics: Equal percentage, Linear
Rangeability: 50: 1
Temperature: -196~+565oC
Leakage: ANSI CLASS IV, VI.
|
Body type |
550G: Globe type |
501G: Globe type |
|
560G: Angle type |
511G: Angle type |
|
Body size |
1"(25A) to 18"(450A) |
1"(25A) to 18"(450A) |
|
Body rating |
ANSI Class 150 to 2500, JIS10K to 63K |
ANSI Class 150 to 2500, JIS10K to 63K |
|
Fluid temperature |
-196 to +538° |
-196 to +538° |
|
Connections |
Flanged (RF,RTJ), Butt Weld, Socket Weld etc. |
|
Body materials |
SCPH2/WCB,SCPH21/WC6,SCPL1/LCB,SCS13A
/CF8,SCS14A/CF8M,etc. |
|
Trim materials |
SUS410/410SS,SUS630/SCS24,SUS316/CF8M,etc. |
|
Rangeability |
50: 1 to 20:1 |
50: 1 to 20:1 |
|
Flow characteristics |
Linear, Modified Linear, ModifiedEq% |
Linear,Eq% |
|
Leakage |
Metal seat |
ANSI Class IV, V or MSS-SP-61 |
|
Soft seat |
Bubbletight ANSI Class VI |
|
Actuator combination |
5200LA: Pneumatic Diaphragm Actuator
6300LA: Pneumatic Cylinder Actuator
3500LB,3620LA: Solid State Electronic Actuator
3800LA: Microprocessor Actuator |
