Size: 1"~12" (DN25 ~ DN300)
Rating: 150 ~600LB (PN16~PN100)
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

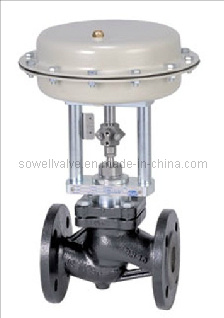

1) It is performer products achieving the self-regulation through the self-force of the controlled medium and saving energy at the same time. The setting value of the pressure and temperature may be regulated freely in the process of operation which has the feature of quick opening flow.
With a number of advantages such as the highly sensitive motion, stable controlled parameter, high-precision regulation, and small leak volume, the products are extensively applied to the automatic control for the pressure and temperature under various working conditions
Main technical parameters:
1) Nominal size: DN 20-300mm
2) Nominal pressure: ANSI 150-600lbs
3) Flange standards: ANSI
4) Leakage class: ANSI ≤ VI
5) Body's material: WCB/CF8/CF8M
|
DN(mm) |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
rated flow coefficient Kv |
without lining |
9.8 |
19 |
32 |
48 |
63 |
108 |
158 |
270 |
360 |
518 |
1114 |
|
with lining |
7.8 |
17 |
28 |
41 |
55 |
87 |
127 |
240 |
311 |
415 |
1121 |
|
rated stroke L(mm) |
8 |
10 |
12 |
16 |
24 |
30 |
34 |
36 |
44 |
55 |
65 |
|
diaphram effective area Ae(cm2) |
280 |
400 |
600 |
1000 |
|
PN(MPa) |
0.6 1.0 |
|
intrinsic flow characteristic |
equal percentage |
|
working temperature t |
≤ 150 |
|
signal scope Pr(Kpa) |
20~100, 40~200, 80~240, section width: 20~60, 60~100 |
|
intrinsic error % |
with locator |
± 2.0 |
without locator |
± 10 |
|
back differential % |
± 1.5 |
± 8 |
|
dead zone % |
± 1.5 |
± 6 |
|
start and terminal error % |
± 2.0 |
± 10 |
|
rated stroke erroe % |
± 2.5 |
|
allowed leakage L/h |
leakage is zero within allowed pressure differential |
