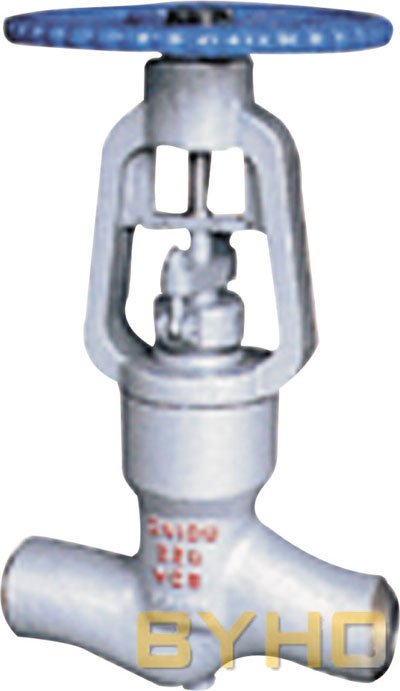

langed End Pressure-seal Globe Valve 900Lb~2500Lb
Standard Material Specifications
NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM |
Type A105 | Type A182 F22 | Type F34(L) | Type F316(L) |
1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
2 | Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
3 | Stem | A182 F6 | A182 f304 | A182 F304(L) | A182 F316(L) |
4 | Pressure Seat | A105 | A182 F304 | A182 F304(L) | A182 F316(L) |
5 | Pressure Ring | A182 F304(L) | F316L |
6 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
7 | Pin | A276 420 | A276 304 |
8 | P.S.Washer | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
9 | P.S.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
10 | Stem Packing | Flexible Graphite | PTFE |
11 | Gland | A276 420 | A182 F304 |
12 | Gland Flange | A216 WCB | A351 CF8 |
13 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
14 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
15 | Yoke Nut | A276 410 |
16 | Handwheel | A197 |
17 | Nameplate | SS |
18 | H.W.Nut | A194 2H | A194 4 | A194 8 | A194 8M |
Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3,CH3OOH etc |
Suitable Temperature | -29 425 | -29 550 | -29 180 |
Note: Other materials are available upon request.
Dimensions (mm) and Weights (Kg)
NPS | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
L(RTJ) | 900Lb 1500Lb | 216 | 229 | 254 | 279 | 305 | 368 |
2500Lb | 264 | 273 | 308 | 349 | 384 | 451 |
H(OPEN) | 900Lb 1500Lb | 318 | 318 | 318 | 398 | 408 | 524 |
2500Lb | 333 | 333 | 333 | 410 | 420 | 524 |
W | 160 | 160 | 180 | 200 | 250 | 280 |
Weights | 900Lb 1500Lb | 15.5 | 16.9 | 18.9 | 28.9 | 34.3 | 52.8 |
2500Lb | 18.0 | 20.5 | 23.0 | 36.1 | 45.0 | 81.5 |
