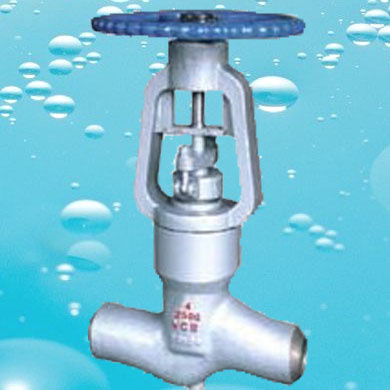

Pressure Sealed Globe Valve
| Price: |
Negotiable |
| Trade Terms: |
by Air/Sea |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Class 600~2500 Pressure Sealing Globe Valve
Size: 2"~12" Class600~900lb
2"~10" Class1500~2500lb
OS&Y, Rising stem, Plug Disc
Pressure sealing Bonnet, Threaded or welded seating
Material: : ASTM A216 WCB, A217 WC6, A351CF8, A351CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Product Details
Design and Manufacture: ANSI B16.34, BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: ANSBI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598
A. Back up ring: Absorbs thrust applied by internal pressure
B. Thrust ring: Protects the soft metallic gasket from deformation
C. Gasket: Unique angular design provides superior sealing
More Product Features
| Prod Model: |
PJ11/61W-2500LB 1/2"-2" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
