Pressure Seal Gate Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
others |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

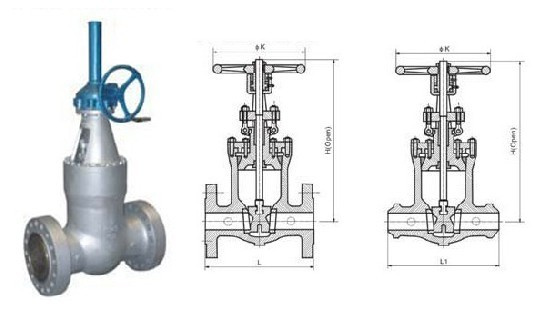

Pressure Seal Gate Valve
CLASS 600~2500 PRESSURE SEAL GATE VALVE
OS&Y, Rising stem, Flexible wedge
Pressure seat Bonnet, Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351CF8, A351CF8M, A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: AMSI B16.34, API600 API6D, BS1414
Face to face(end to end): ANSI B16.10, API6D
Flanged cnnection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598, API6D
A. Back up ring: Absors thrust applied by internal pressure
B. Thrust ring: Protects the soft metallic gasket from deformation
C. Gasket: Unique angular design provides superior sealing
More Product Features
| Prod Model: |
PZ41H-2500LB 1/2'-2" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Seal Surface: |
Wedge Gate Valve |
| Material: |
Carbon Steel |
| Connection Form: |
Flange |
Established in 1986, ZhangSheng Valve Co., Ltd (original name: Zhejiang Hengtong Valve Co., Ltd )has become a professional manufacturer and exporter of industrial valves in China with the best in quality and service. The company has two manufacturing plants, including one in Wenzhou, the other one in Lishui City, Zhejiang Province, covering an area of 21, 186 square meters.
with more than 20 years experience, ZHANGSHENG valves handle diverse applications in Metallurgy, Electricity, petroleum, Chemicals, Papermaking, iron and steel, coal gas, mine, Plumbing, sewage disposal, Pharmaceuticals industries.
Our main products
Range: Butterfly, ball, gate, knife gate valve, globe, check, plug, bellow sealed valve, cast iron valve etc.
Operations: Manual, gearbox, pneumatic, electronic, hydraulic, hydraulic-pneumatic
Size: NPS 1"~160"
Pressure: 0.25Mpa-32Mpa
Standards: ANSI, DIN, BS, JIS, GB etc.
Connection End: Flanged, wafer type, BW, SW, NPT, etc.
Materials: Cast/Forged Steel, Cast Ion, Stainless Steel, Alloy steel, Duplex Steel etc
All products are designed and manufactured fully comply with API, ANSI, JIS, DIN, BS, GB and other international standards, as well as customers' special requirements.
Quality Assurance
ZHAGNSHENG's Quality Assurance is dedicated to pursuit of zero defect valve, and this has resulted in the company having more quality qualifications than most of our competitors. ZHANGSHEGN is certified by ISO 9001, API6D, CE, AZ.
Our products are marketed in over thirty provinces and municipalities at home and also exported to Europe, America, Middle East, South East Asia, and so on, We have won great reputation from our customers. We aim at "Let ZHANGSHENG go global " and sincerely hope to build up friendly, cooperative and beneficiary relations with more clients.
