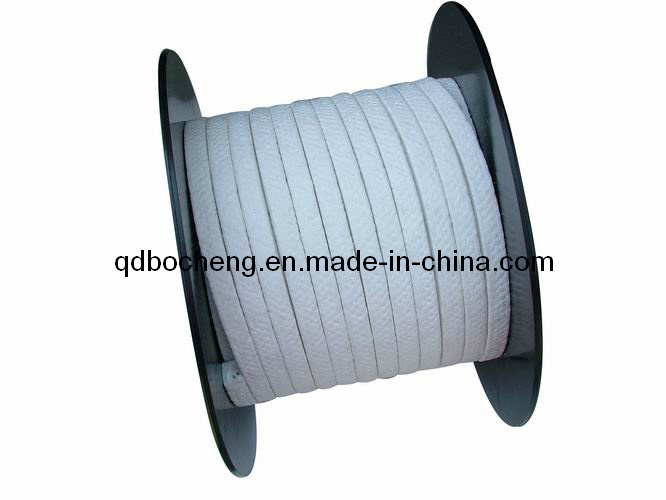

PTFE Filament Packing
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50KGS |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
PTFE filament packing which is impregnated piece by piece with PTFE dispersion. Flexibility, almost complete chemical inertia, dimensional stability, low friction coefficient to compression, and excellent resistance to compression are qualities classifying this packing among the best ones available in the industrial field.
PTFE Filament Packing is suitable for all the chemical compounds (excepting cast alkaline metals and the gaseous fluorine), alternative and rotary motions shafts operating at high peripheral speed, rod, pistons, valve stems, expansion joints, etc.
|
Application Data |
|
|
Valves |
Reciprocating |
Rotating |
|
T (C) |
PU+-260C |
|
P (bar) |
200 |
100 |
20 |
|
V (m/s) |
2 |
2 |
4 |
|
PH |
0-14 |
|
Standard size |
mm |
3.2 |
4.8 |
6.4 |
7.9 |
9.5 |
11.1 |
12.7 |
15.9 |
19 |
22.2 |
25.4 |
|
inch |
1/8 |
3/16 |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
5/8 |
3/4 |
7/8 |
1 |
|
Kg/3m |
0.07 |
0.14 |
0.23 |
0.35 |
0.5 |
0.68 |
0.88 |
1.35 |
1.92 |
2.57 |
3.37 |
|
Braiding Method |
Square Braid |
Lattice Braid |
| Prod Model: |
PTFE Filament Packing-002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: |
PTFE |
| PH: |
0-14 |
| Size: |
3mm-50mm |
| Density: |
1.2 ~ 1.3 g/cm3 |
| Shaft Speed: |
2m/S-8m/S |
| Style: |
Mechanical Seal |
| Shape (For Gasket): |
PTFE Filament Braided Packing |
| Function: |
Fixed Sealing~@~Rotary Sealing~@~Shaft Sealing~@~H |
| Application: |
Equipment Seal~@~Pump Seal~@~Flange Seal~@~Hydrose |
| Standard: |
Standard |
| Material: |
PTFE |
