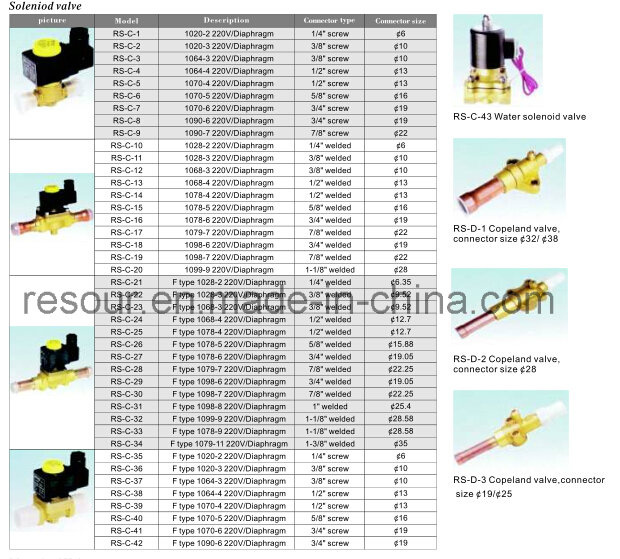

Specifications
1.Using widely in refrigeration industry
2.Two-way bi-flow brass electromagnetic

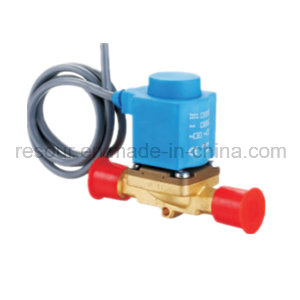

3.More types and model can be choseSolenoid Valve For Refrigeration Condensing Unit
Application:
1. Used into liquid line, suction line and steam line of refrigeration system to control the refrigerant to pass or not
2.Used in refrigeration compressor group, central air-conditioning, cold storage equipment
and bus air-conditioning system.
Operating principle:
While energized in coil, the electromagnetic power opens the small orifice. Then the pressure in upside of valve reduced, so the pressure difference between both side of diaphragm happen and lead to diaphragm lift to open the main orifice. While de-energized in the coil, plug stem will drop and close the small orifice because of spring force and its weight. The flow media enters into upside of diaphragm through throttle hole, then pressure in both side of diaphragm balances, then the diaphragm will drop and close the main orifice.
Technical data
1.Ambient temperature: -20 ~ 50 .C
2.Medium temperature: -25 ~ 120 .C
3.Max. working pressure: 3 MPa
4.Available medium: R134a,R22,R407C,R404A/507,air,water and oil.
5.Optional voltage of solenoid coils:
6.A.C.: 24V,36V,110V,220V,380V.
7.D.C.:12V,24V,110V,220V
please contact us freely to get more infomation or other models.
RESOUR Refrigeration Integration Co., Ltd Located in Shengzhou City which draws the most of Chinese manufacturers here because of the convenient traffic that only 1 hour to Hangzhou, Ningbo, Yiwu by car and 1.5 hours to Shanghai, Taizhou, Wenzhou by train.
Our factory is one of the leaders into refrigeration industry since 1992, plant area over than 20, 000, number of workshops is over than 8, number of employees is over than 200.
We are turning into a multi-function company who collects matching, designing, customizing, standard production, trading and maintenance together through our inceasing development and innovation.
We devote our whole team into refrigeration industry service, including cold room equipment and spare parts, commercial and household refrigerator spare parts, air conditioning and spare parts, also the corresponding facilities.
We are ready for you at any time.
