Quick Details
Place of Origin:Zhejiang, China (Mainland)
Brand Name:RESOUR
Model Number:RS-E
Type:Other
Application:Refrigeration Parts
Certification:CE
Connector:Male or Female
Valve body:Forged brass
Diaphragm:Stainless steel
Special type:Can be customized
Testing before shipping:Yes
Packaging & Delivery
Packaging Details: | Carton cover with Single inner box |
|---|
| Delivery Detail: | 10-30 days |
|---|
Specifications
1.Wide range of evaporation temperature
2.Use with R22,R134A,R404A,R507,R407C&R502
3.Danfoss and Sporland types can be chose

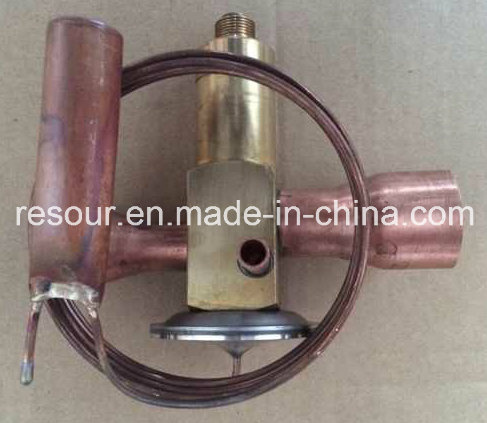

Thermostatic Expansion Valve With Exchangeable Orifice
Application: It can be used for refrigeration system in order to apply automatically control.
Feature:
1. RV series expansion valve widely applied into air-conditioner and various refrigerating devices.
2. Adopting design with huge & flat stainless steel diaphragm and seat supported by valve needle, to make needle matched with valve port accurately,and get best tightness.
3. Both of welded tube and valve body adopt high strength silver welding which can further avoid body leakage.
4. It can provide best performance for air-conditioner and various of refrigerating equipment.
5. Max.test pressure: 36bar
6. Allow working pressure: 28bar
Parameter:
| Model | Capacity/RT | Inlet x outlet | Equalizer | Capillary Length |
| @Evap.Temp -7ºC | In | mm |
| Type-F | FV-1-C | 1.09 | 1/4"X1/2" SAE | Internal | 760 |
| FV-1.5-C | 1.74 | 3/8"X1/2" SAE |
| FV-2-C | 2.18 | 3/8"X1/2" SAE |
| FV-2.5-C | 2.72 | 3/8"X1/2" SAE |
| FVE-1-C | 1.09 | 1/4"X3/8" SAE | External | 760 |
| FVE-1.5-C | 1.74 | 3/8"X1/2" SAE |
| FVE-2-C | 2.18 | 3/8"X1/2" SAE |
| FVE-3-C | 3.49 | 3/8"X1/2" SAE |
| FVE-5-C | 5.67 | 3/8"X1/2" SAE |
| Type-S | SVE-5-C | 5.67 | 1/2"X7/8" ODF | External | 1500 |
| SVE-8-C | 8.72 | 5/8"X7/8" ODF |
| SVE-10-C | 10.90 | 5/8"X7/8" ODF |
| SVE-15-C | 15.50 | 7/8"X1-1/8" ODF |
| Type-O | OVE-15-C | 15.50 | 7/8"X1-1/8" ODF |
| OVE-20-C | 23.00 | 7/8"X1-3/8" ODF |
|
|
|
|
|
|
| CP100 series Applied into Air-conditioner, Evaporating temperatue range: -25ºC ~ +10ºC |
| Model | Capacity/RT | Inlet x outlet | Equalizer | Capillary Length |
| @Evap.Temp +4.5ºC | In | mm |
| Type-F | FVE-3-CP100 | 3.50 | 3/8"X1/2" SAE | External | 760 |
| FVE-5-CP100 | 5.70 | 3/8"X1/2" SAE |
| Type-S | SVE-5-CP100 | 5.70 | 1/2"X7/8" ODF | 1500 |
| SVE-8-CP100 | 8.70 | 5/8"X7/8" ODF |
| SVE-10-CP100 | 10.90 | 5/8"X7/8" ODF |
| SVE-15-CP100 | 15.50 | 7/8"X1-1/8" ODF
|
