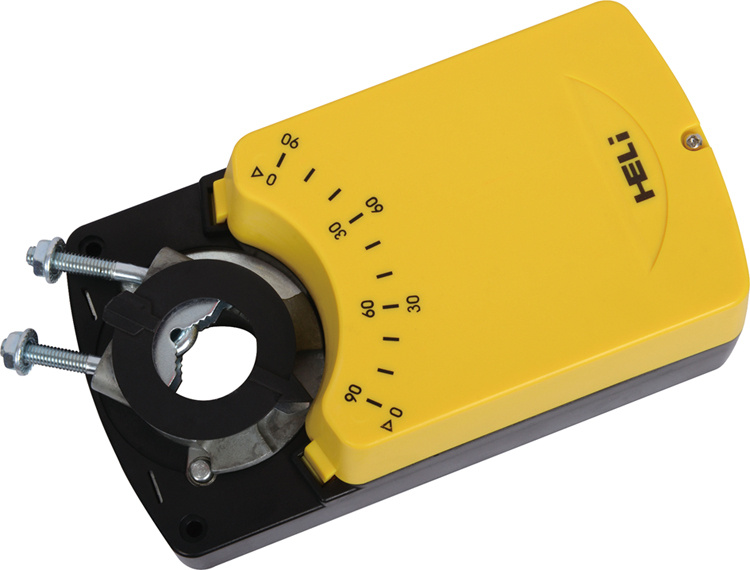

Rotary Damper Valve Actuator (HLF02-16DN)
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Damper actuator
Model: HLF02-24DN
Output Torque: 24N. M
Time: 140s
Operating Voltage: 24VAC/24VDC, AC220V~230V 50/60Hz, AC110V 50/60Hz
Power: 4W
1)Install directly and needn't the linked apparatus, saving the time and cost of installation.
2)the circuit possesses the function of electric overloading protection, and it doesnt need localized switch. Therefore this reduces the consumption of power and improves the actuations reliability.
3)hand switch control, simplify the spot modulation of equipment, permit the hand localized on the emergent situation.
4)provide the simple way for spot modulation
5)tangible location of baffle plate.
| Model | HLF02
04D | HLF02
08D | HLF02
16D | HLF02
24D | HLF02
32D | HLF02
04A | HLF02
08A | HLF02
16A | HLF02
24A |
| Output Torque | 4Nm | 8Nm | 16Nm | 24Nm | 32Nm | 4Nm | 8Nm | 16Nm | 24Nm |
| Max Baffle Plate size | 1m 2 | 2m 2 | 4m2 | 6m2 | 6m2 | 1m2 | 2m2 | 4m2 | 6m2 |
| Time for Rotating 90 ° | 35S | 30S | 80S | 125S | 140S | 35S | 30S | 80S | 125S |
| Modulating Scope | 0~90 ° (In 5 ° Incerments) |
| Operating Voltage | 24VAC/24VDC AC220V~230V 50/60Hz AC110V 50/60Hz |
| Power Rating | 4W | 3.9W/4.8W | 4W | 2.5W | 4W/4.8W |
| Control Input | 2/3( Flocating Points) | 0~10VDC 4~20mA |
| Position Output | non | 0~10VDC ^4~20mA |
| Driving Shafts | 8~32Nm Cylinder shaft size: φ 20mm; Square shaft size: 16x16mm |
| 4Nm Cylinder shaft size: φ 16mm; Square shaft size: 12x12mm |
| Housing | ABS engineering plastic |
| Ambient Temperature | Operation:-20~+50 ° C Storage:-40~+80 ° C |
| Relative Humidity | 0~90%RH |
| Protection | IP54 |
| Noise Grade | 45Db (A) |
| Net Weight | 8~32Nm: 1.1kg 4Nm :0.7kg |

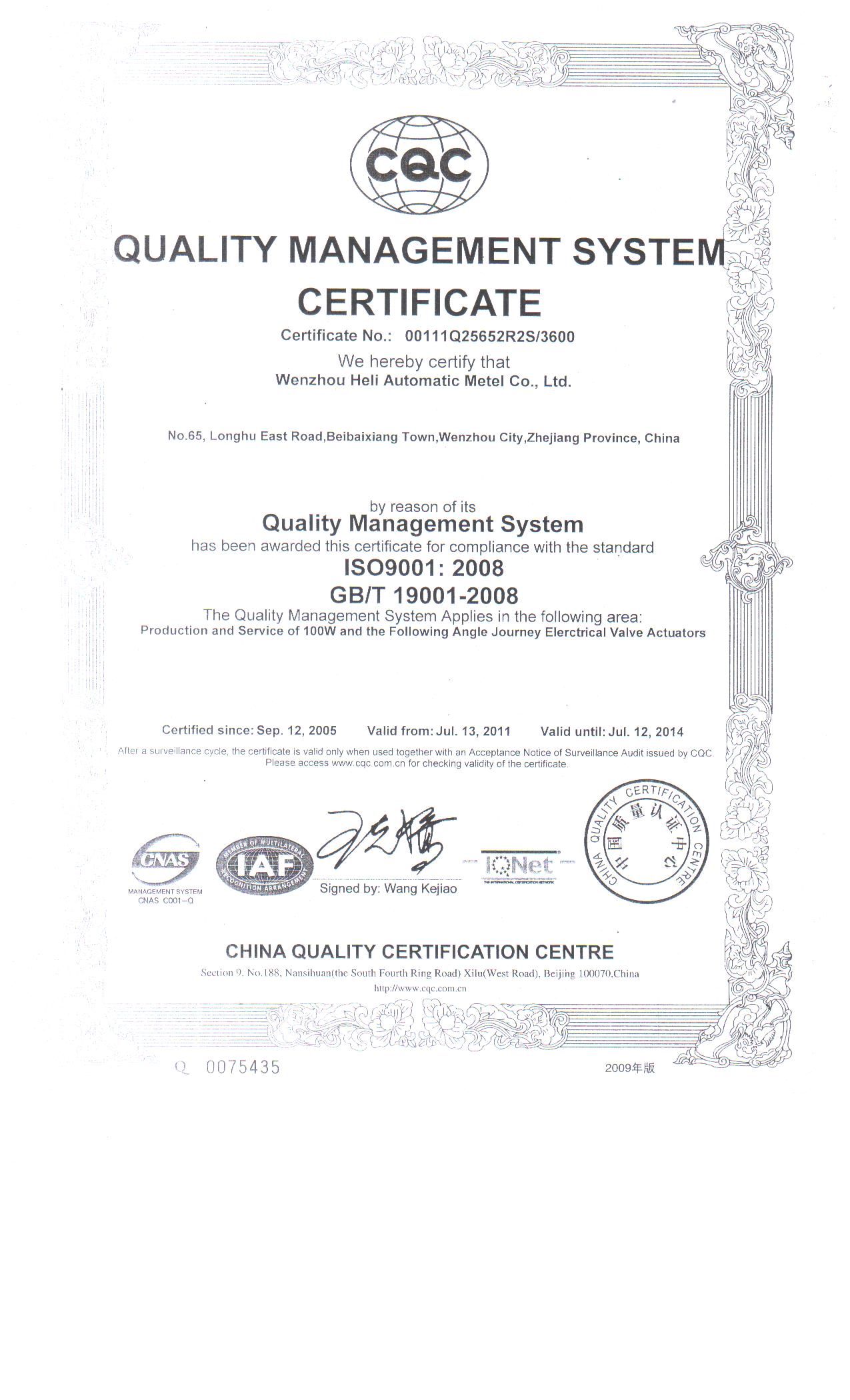

| Certificate | CE, ISO9001 |
| Usage life | 60,000 |
| Prod Model: |
HLF02-24DN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wenzhou Heli Automatic Meter Co., Ltd. (HL) is a High-tech enterprises specialized in manufacturing electric actuator, pneumatic actuator, rotary air damper actuator, integrating scientific research, production, distribution and service.
Founded in 1999, covers an areas of 13118 square meters. HELI company consistently pays attention to product quality and all of HELI products have passed the CE certification, the test of Shanghai industrial Automatic Instrument Institute with every performance and index qualified, etc.
HELI will bring you much more convenience. By consistently keeping the management conception of taking market as guide, serving by quality and credit, and developing by technology and innovation. Our company guarantees to realize the goal of double-win with user's benefits as precondition. In the future, HELI people will actively take the challenge with excellent quality, scientific management and perfect service.
Sincerely welcome friends all over the world to come here for negotiation and cooperation.
