Basic Info.
Work Pressure: Low Pressure (Pn<1.6mpa)
Material of Seal Surface: Soft Sealed
Connection Form: Wafer
Structure: Centre Sealing
Seal Form: Force Sealed
Working Temperature: Normal Temperature (-40° C
Application: Industrial Usage, Water Industrial Usage, Household Usage
Name: Hand Lever Lugged Butterfly Valve
Body: Ductile Iron
Disc: D. I or Ss or Wcb
Spindle: Ss304/420/410
Size: 40mm-600mm
Coating: Epoxy Coated to 250 Microns
Connection: Wafer, Lugged, Flanged
Pressure Rate: Pn10/16
Export Markets: Global
Additional Info.
Trademark: None/OEM
Packing: Bubble Bags / Wooden Case
Standard: Net Weight: 16.3KGS
Origin: Suzhou
HS Code: 8481801090
Production Capacity: 4800 Sets Per Month
Product Description

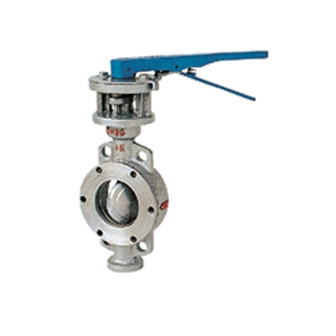

Hand Lever Lugged Butterfly Valve
1- Body: Ductile Iron GGG40/50 or Cast Iron GG25 or CF8/CF8M or WCB
2- Spindle: SS420/SS431/SS416
3- Disc: Ductile Iron, Cast Iron. SS304 (CF8) Stainless steel
4- Seat: EPDM or PTFE
5- Pin: Stainless Steel
6- Epoxy Resin coating internal & external, thickness above 250 micron
7- Connection: Wafer type, lug type, flange type
8- Work pressure: PN10/16; Size Range: 2" to 72 "
9- Design Standard: DIN, EN558-1, API609; Top flange: ISO 5211;
10- Operate: Handwheel or Worm Gear
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.
We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
