Application
Stainless steel sampling valves are used in the food, dairy, brewery, winery and many other hygienic industries.
Materials
Valve body: Stainless steel, AISI 316L
Valve head: Stainless steel, AISI 304
Diaphragm: Silicone (for standard valve), EPDM (for valve with micro type connector)
Standard Design

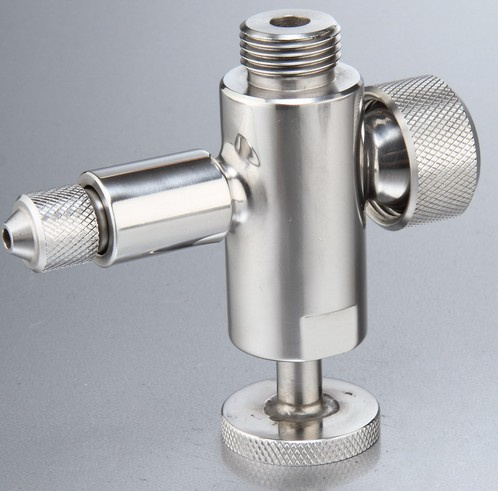

Aseptic sampling valve is made from three parts: Valve body, valve head and one piece of diaphragm. A rubber diaphragm valve is put at the axis of valve head, acting as an extensible valve core.
· End connections can be welded, clamped or threaded, only one size DN8 available.
· Handle type: Rotary handle, key handle
· Valve open: Sampling valve close: Sterilization
Technical Specification
Nominal Pressure:
Max. Product pressure: 87psi (6bar)
Temperature:
Max. Sterilization temperature: 130° C, dry steam: 121° C (2bar).
Steam must be dry, because condensed water will damage the diaphragm. The diaphragm should be replaced after 100 times samplings or sterilizations.
Standard |
3A,DIN,IDF,SMS etc. |
Size |
DN15-150 &1/2"-8" |
Material |
SS304,SS316L |
Body/Disk |
Made by Forged material,fully precision machined by CNC machine. |
Gaskets |
Silicone,EPDM,Telfon,Nitrile etc. |
Connection |
Welding, clamp, thread and flange |
Handle |
Manual, 2/3/4-position pulling handle, multi-position plastic/stainless steel handle,12 position gear handle.(can be produced by requirements) |
Surface Treatment |
180-420 Grit or unpolished |
Quality/Certificate |
ISO9001 |
Temperature |
-10 degree to 200degree |
Special product |
As per the requirements of customers |
Applications |
Food, dairy, beverage, beer, wine, pharmacy, biology and chemical industry. |
Other Choice |
Pneumatic valve and Electric valve (100% Tested /100% Inspected) |
Service |
Prompt quotation,competitive price,punctual delivery and guaranteed quality |
