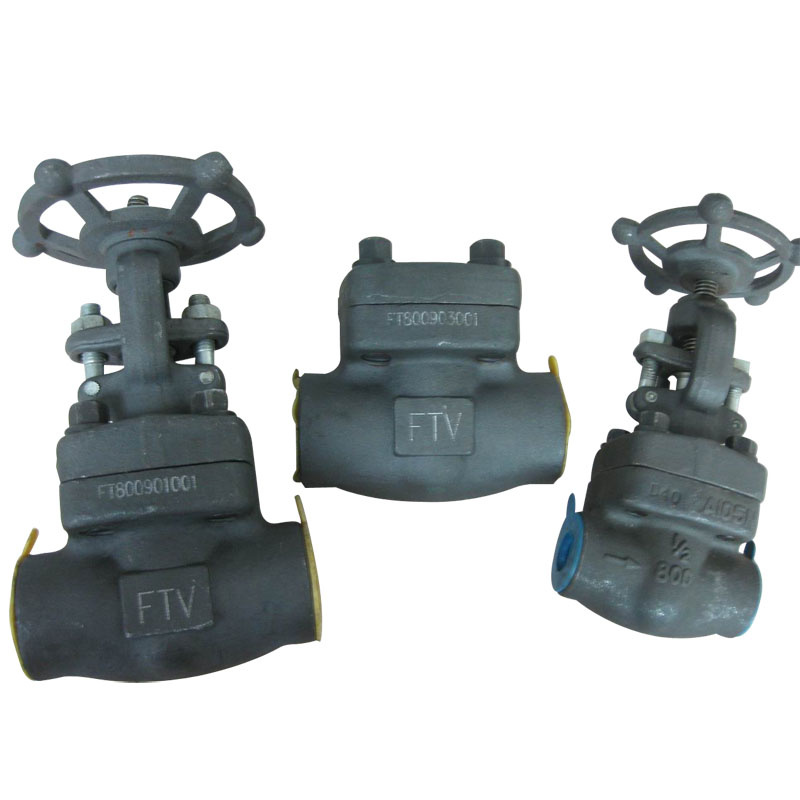

Screwed and SW Forged Steel Valves
| Price: |
US $ 10-500/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Set |
| Pay Type: |
L/C,T/T,D/P |
Screwed and SW Forged Steel Valves-
forged steel gate valve, globe valve, check valve, ball valveStandard compliance:
1) Design and manufacture: API602, BS5352
2) Test and inspection: API598
3) Socket weld end: ANSI B16.11
4) Screwed end: ANSI B1.20.1
Specifications:1) Size: 1/4" to 2-1/2"
2) Class: 150LB to 2500LB
3) Type: Forged Steel gate valves, ball valves, globe valves, swing check valves, lift check valve etc. Bolted bonneted or welded bonnet, reducer bore or full bore, Screwed end or SW end.
4) Material: A105, LF2, F304, F316, F304L, F316L, F11, F22, F51, F5, F9, MONEL, ALLOY 20 etc
5) Operation: Handwheel
Forged Steel Gate Valve Class 800 / 1500 / 2500Bolted bonnet or welded bonnet, Outside screw & yoke, Reduced port or full port
Design and manufacture: API 602 & ANSI B16.34
Socket weld end: ANSI B16.11
Screwed end: ANSI B1.20.1
Test and inspection: API 598
Size: 1/4" ~ 3"
Standard materials: A105, LF2, F5, F11, F22,
F304, F304L, F316, F316L etc.Standard materials of parts| No. | Parts | Materials |
| 1 | Body | A105 |
| 2 | Bonnet | A105 |
| 3 | Stem | A276-410 |
| 4 | Disc | A276-420 |
| 5 | Seat ring | A276-410 + STL |
| 6 | Bonnet bolt | A193-B7 |
| 7 | Gasket | 304 + Graphite |
| 8 | Gland | A276-410 |
| 9 | Packing | Graphite |
| 10 | Gland flange | WCB |
| 11 | Gland bolt | A276-410 |
| 12 | Gland bolt nut | A194-2H |
| 13 | Gland bolt pin | A276-410 |
| 14 | Sleeve | A276-410 |
| 15 | Sleeve washer | A276-410 |
| 16 | Handwheel | A197 |
| 17 | Nameplate | Aluminum |
| 18 | Handwheel nut | A108-1020 |
Class 800| ND | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) | 65(2.1/2) | 80(3) |
| Dia. | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
|
| d | mm | 7 | 7 | 10 | 13.6 | 18 | 24 | 29 | 36.8 | 46.5 | 51 |
| L | mm | 79 | 79 | 79 | 92 | 111 | 120 | 120 | 140 | 178 | 185 |
| H (Open) | mm | 166 | 166 | 166 | 169 | 193 | 230 | 246 | 283 | 330 | 359 |
| W | mm | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 | 200 |
| Wt | B.B. | Kgs | 2.3 | 2.2 | 2.1 | 2.3 | 4 | 5.9 | 6.9 | 11.2 | 15.8 | 20 |
| W.B. | Kgs | 1.9 | 1.8 | 1.7 | 2.1 | 3.7 | 5.2 | 6.2 | 10.4 | 14.8 | |
Class 1500| Nominal | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| diameter | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) |
| d | mm | 7 | 7 | 13.6 | 13.6 | 18 | 24 | 29 | 36.8 |
| L | mm | 111 | 111 | 111 | 111 | 114 | 120 | 140 | 162 |
| H (Open) | mm | 197 | 197 | 197 | 197 | 224 | 237 | 276 | 320 |
| W | mm | 125 | 125 | 125 | 125 | 160 | 160 | 180 | 180 |
| Weight | B.B. | Kgs | 4.8 | 4.7 | 4.6 | 4.6 | 6.3 | 8.7 | 12.1 | 17.2 |
| W.B. | Kgs | 4.1 | 4 | 3.9 | 3.9 | 5.8 | 7.8 | 11.2 | 16 |
Class 2500| Nominal diameter | mm(in) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| d | mm | 13.6 | 13.6 | 18 | 25 | 29 | 36.8 |
| L | mm | 114 | 114 | 140 | 162 | 162 | 200 |
| H (Open) | mm | 218 | 218 | 259 | 320 | 320 | 350 |
| W | mm | 125 | 125 | 160 | 180 | 180 | 200 |
| Weight | Kgs | 7 | 7 | 14 | 23 | 22.5 | 28 |
Forged Steel globe Valve Class 800 / 1500 / 2500Bolted bonnet or welded bonnet, Outside screw & yoke, Reduced port or full port
Design and manufacture: API 602 & ANSI B16.34
Socket weld end: ANSI B16.11
Screwed end: ANSI B1.20.1
Test and inspection: API 598
Size: 1/4" ~ 2 "
Standard materials: A105, LF2, F5, F11, F22, F304, F304L, F316, F316L etc.Standard materials of parts | No. | Parts | Materials |
| 1 | Body | A105 |
| 2 | Bonnet | A105 |
| 3 | Stem | A276-410 |
| 4 | Disc | A276-420 |
| 5 | Bonnet bolt | A193-B7 |
| 6 | Gasket | 304 + Graphite |
| 7 | Gland | A276-410 |
| 8 | Packing | Graphite |
| 9 | Gland flange | WCB |
| 10 | Gland bolt | A276-410 |
| 11 | Gland bolt nut | A194-2H |
| 12 | Gland bolt pin | A276-410 |
| 13 | Sleeve | A276-410 |
| 14 | Hand wheel | A197 |
| 15 | Name plate | Aluminum |
| 16 | Hand wheel washer | A108-1020 |
| 17 | Hand wheel nut | A194-2H |
Dimensions (in mm & inch) and weight
Class 800| Nominal | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) | - |
| diameter | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| d | mm | 8 | 10 | 10 | 13 | 17 | 23 | 30 | 37 | 46 |
| L | mm | 79 | 79 | 79 | 92 | 111 | 130 | 152 | 172 | 200 |
| H (Open) | mm | 176 | 176 | 176 | 176 | 212 | 230 | 254 | 294 | 327 |
| W | mm | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Weight | B.B. | Kgs | 2.2 | 2.1 | 1.9 | 2.1 | 3.9 | 5.8 | 7.2 | 10.8 | 16 |
| W.B. | Kgs | 1.9 | 1.8 | 1.7 | 2.1 | 3.7 | 5.2 | 6.2 | 10.4 | 14.8 |
Class 1500| Nominal | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| diameter | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) |
| d | mm | 7 | 7 | 10 | 13 | 17 | 23 | 30 | 37 |
| L | mm | 111 | 111 | 111 | 111 | 130 | 152 | 172 | 220 |
| H (Open) | mm | 207 | 207 | 207 | 207 | 240 | 258 | 290 | 337 |
| W | mm | 125 | 125 | 125 | 125 | 160 | 160 | 180 | 200 |
| Weight | B.B. | Kgs | 4.9 | 4.9 | 4.7 | 4.6 | 6.8 | 9.2 | 13.6 | 20.9 |
| W.B. | Kgs | 4.3 | 4.3 | 4.1 | 4 | 6.2 | 8.6 | 12.7 | 19.1 |
Class 2500| Nominal diameter | mm(in) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| d | mm | 11 | 14 | 19 | 29 | 29 | 36 |
| L | mm | 130 | 130 | 172 | 220 | 220 | 240 |
| H (Open) | mm | 227 | 227 | 288 | 330 | 330 | 360 |
| W | mm | 160 | 160 | 160 | 200 | 200 | 220 |
| Weight | Kgs | 8 | 8 | 17 | 26 | 25 | 34 |
Forged Steel Piston Check Valve Class 800 / 1500 / 2500
Bolted cover, Piston type disc, Reduced port or full port.
Design and manufacture: API 602 & ANSI B16.34
Socket weld end: ANSI B16.11
Screwed end: ANSI B1.20.1
Test and inspection: API 598
Size: 1/4" ~ 2 "
Standard materials: A105, LF2, F5, F11, F22,F304, F304L, F316, F316L etc.
Standard materials of parts | No. | Parts | Materials |
| 1 | Body | A105 |
| 2 | Cover | A105 |
| 3 | Disc | A276-420 |
| 4 | Cover bolt | A193-B7 |
| 5 | Gasket | 304 + Graphite |
| 6 | Name plate | Aluminum |
Dimensions (in mm & inch) and weight
Class 800| Nominal | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) | - |
| diameter | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| d | mm | 7 | 7 | 10 | 13 | 17 | 23 | 30 | 37 | 46.5 |
| L | mm | 79 | 79 | 79 | 92 | 111 | 120 | 152 | 172 | 200 |
| H | mm | 61 | 61 | 61 | 61 | 78 | 84 | 103 | 118 | 132 |
| Weight | Kgs | 1.5 | 1.4 | 1.2 | 1.4 | 2.3 | 3.9 | 5.6 | 8.9 | 12.5 |
Class 1500| Nominal | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| diameter | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) |
| d | mm | 7 | 7 | 10 | 13 | 17 | 23 | 30 | 37 |
| L | mm | 111 | 111 | 111 | 111 | 130 | 152 | 172 | 220 |
| H | mm | 79 | 79 | 79 | 79 | 97 | 104 | 120 | 139 |
| Weight | Kgs | 3 | 3 | 3 | 3.4 | 4.8 | 6.9 | 10.7 | 14.6 |
Class 2500| Nominal diameter | mm(in) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| d | mm | 10 | 13 | 17 | 23 | 30 | 35 |
| L | mm | 127 | 152 | 172 | 172 | 235 | 235 |
| H | mm | 79 | 98 | 110 | 110 | 170 | 170 |
| Weight | Kgs | 6.6 | 11.8 | 17.6 | 16.9 | 21.5 | 21.3 |
Forged Steel Swing Check Valve Class 800 / 1500Bolted cover, Swing type disc, Reduce port or full port.
Description:
Design and manufacture: API 602 & ANSI
ANSI B16.34
Socket weld end: ANSI B16.11
Screwed end: ANSI B1.20.1
Test and inspection: API 598
Size: 1/4" ~ 2 "
Standard materials: A105, LF2, F5, F11, F22,F304, F304L, F316, F316L ,etc.Standard materials of parts | No. | Parts | Materials |
| 1 | Body | A105 |
| 2 | Cover | A105 |
| 3 | Disc | A276-420 |
| 4 | Seat ring | A276-410 + STL |
| 5 | Retaining nut | A194-2H |
| 6 | Hing | A734-CA40 |
| 7 | Hing pin | A276-410 |
| 8 | Supporter | A276-304 |
| 9 | Cover bolt | A193-B7 |
| 10 | Gasket | 304 + Graphite |
| 11 | Name plate | Aluminum |
Dimensions (in mm & inch) and weight
Class 800| Nominal | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) | - |
| diameter | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| d | mm | 7 | 7 | 10 | 13.6 | 18 | 24 | 29 | 36.8 | 46.5 |
| L | mm | 79 | 79 | 79 | 92 | 111 | 120 | 120 | 140 | 170 |
| H | mm | 61 | 61 | 61 | 61 | 78 | 84 | 101 | 120 | 133 |
| Weight | Kgs | 1.3 | 1.2 | 1 | 1.1 | 1.9 | 3.4 | 4.5 | 7.3 | 9.8 |
Class 1500| Nominal | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| diameter | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) |
| d | mm | 7 | 7 | 10 | 13.6 | 18 | 24 | 29 | 36.8 |
| L | mm | 111 | 111 | 111 | 111 | 120 | 140 | 140 | 162 |
| H | mm | 79 | 79 | 79 | 79 | 97 | 105 | 120 | 140 |
| Weight | Kgs | 3.2 | 3.1 | 3 | 3.6 | 4.3 | 6.1 | 8.8 | 12.6 |
| Prod Model: |
THRD/SW FS VALVE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/4" to 2-1/2" |
| Design Standard: |
API602 |
| Body Material: |
Carbon Steel,Alloy Steel,Stainless Steel |
| Connecting End: |
Sw,NPT,RF,Bw |
| Material: |
Carbon Steel |
| Connection Form: |
Thread |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Industrial Usage |
Shenzhen Front Valve Co., Ltd. is one of the leading supplier of various industrial valves, fittings, flanges and relative piping accessories in China. We have been working in this line for more than 10 years, exporting our products to all over the world, such as Europe, USA, South America, Africa, Middle-East, Australia etc. Our quality and good reputation are highly valued by our customers.
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B. Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
