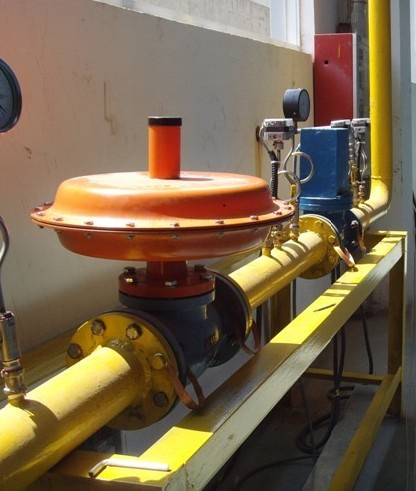

Self-actuated differential pressure control valve:
Differential pressure control valve for the double-flap structure, stem unbalanced force is small, compact structure, for heating (air conditioning) water system, was charged with a constant pressure system, and has the following characteristics:
1, constant pressure control system has been;
2, support was charged with self-regulation within the system;
3, absorbing external network pressure fluctuations;
4, the use of advanced non-level voltage structure, control over adjustable pressure of up to 25: 1;
5, with automatic elimination of blocking function;
6, flange dimensions conform to GB4216.2 in gray cast iron flange dimensions.
Could be degined with the drawings or samples
Could be delivered combined with other items
|
DN |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
Rated flow coeffient KV |
7 |
11 |
20 |
30 |
48 |
75 |
120 |
190 |
300 |
480 |
760 |
1100 |
1750 |
|
stroke (mm) |
8 |
|
10 |
|
14 |
20 |
|
25 |
40 |
|
50 |
60 |
70 |
|
PN |
1.6 4 (Mpa) ANSI 150 300# |
|
pressure range |
15-50,40-80,60-100,80-140,120-180,160-220,200-260,240-300,330-450,430-500,480-560,540-620,600-700,680-800,880-1000,1000-2500 |
|
flow characteristic |
quick open |
|
Adjustment |
± 5 |
|
temperature |
<350 |
|
leakage |
hard seal |
single seat: Iv double seat ,sleeve : II |
|
soft seal |
0.15 |
0.3 |
0.45 |
0.6 |
0.9 |
1.7 |
4 |
6.75 |
11.1 |
16 |
|
pressure reduction |
max |
10 |
|
|
min |
1.25 |
Shanghai ThinkTank Process Management Co., Ltd. is the sole production and R&D institute of Taiwan STONE Company in Mainland China. ThinkTank entered Chinese market in 2002 and moved from Hangzhou to Shanghai headquarter in 2012. Based on over 30 years experience in researching and manufacturing automatic instruments, brining in overseas advanced technology and combining domestic users real working situation, ThinkTank is specialized in producing new typed self-regulating valves, control valves and various kinds of automatic instruments. ThinkTank's business includes engineering projects such as electricity, metallurgy, petrochemical processing, light industry and building materials, municipal water service and natural gas.
Enterprise history
1985.08 Taiwan STONE company was established in Taipei city.
1990.02 Sales network covered Southeast Asia.
2002.06 Branch office was fund in Hangzhou, Zhejiang, handling all business in China
2012.10 Mainland head office was moved to Pudong, Shanghai
Shanghai ThinkTank Process Management Co., Ltd. Has a professional team works for control valves design and engineering application. ThinkTank develops a series of hi-tech products after absorbing overseas advanced technology and innovating.
*New self-regulating, micro pressure, differential pressure, flow, temperature control valve
*New pneumatic (electric) linear actuator (low dB, high pressure) control valve
*Pneumatic (electric) rotary actuator (O/V ball, butterfly) control valve
*Pneumatic (electric) special corrosion resisting control valve
Shanghai ThinkTank Process Management Co., Ltd sticks to the policy of "client oriented, quality comes first, and faith is root". Depending on many years experience on engineering application in various industries, ThinkTank provide clients with good, reliable full service, focusing on maximizing the rate of return on investment for clients.
