Body

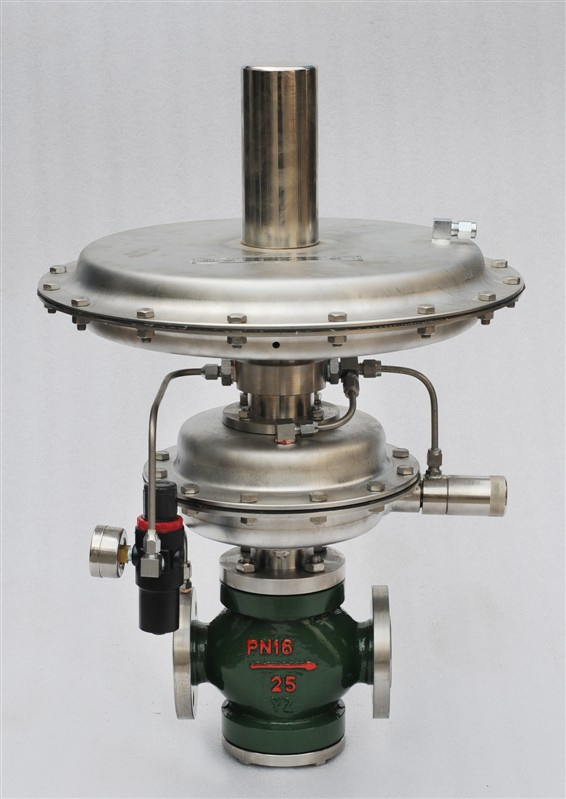

Type: Cast globe type (as shown in figure 1)
Nominal Diameter: DN20\25\32\40\50\65\80\100
Nominal Pressure: GB PN1.0\1.6MPa
ANSI150
JIS 10K
DIN PN16
End connection: Flange type HG20596-97M; ANSI B16.5 RF; DIN2543/2544/2545RF; JIS B2201RF
Face to face dimension: Flange is according to GB/T12221-1989, EN558.1: 1995, ISO5752-1982
Body material: WCB\ZG0Cr18Ni9(CF8)\ZG0Cr18Ni12Mo2Ti(CF8M)
Bonnet type: STD type, -10~80C; STD type, -10~80C; Medium temp type(with Every temperature tank ), ≤ 250C; High temp type(with Every temperature tank and extensions), ≤ 350CPacking: V shape PTFE, flexible graphite, o-rings
Seal gasket: Metal winding gasket, metal graphite gaskets, zigzag gasket and flat gasket
Paint: Carbon steel shell surface required to paint, stainless steel or copper surface without paint.
Trim
Plug type: Parabolic plug
Flow characteristics: Quick opening
Plug material: 0Cr18Ni9(304), 0Cr17Ni12Mo2(316)
Seat material: 0Cr18Ni9(304), 0Cr17Ni12Mo2(316), 304+F4, 316+F4
Stem material: 0Cr17Ni4Cu4Nb(17-4pH), 0Cr17Ni12Mo2(316)
Bellows material: 0Cr17Ni12Mo2(316), 00Cr17Ni14Mo2(316L)
Actuator
Type: Multi-spring diaphragm type
Pressure Regulating Range: Please see table 1
Upper and Lower Case Material: A3\A4 With PTFE\0Cr18Ni9(304)
Diaphragm Rubber: NBR, EPDM, FPM and other oil-resistance rubbers
Spring material: 60Si2Mn
Work temperature: -20~80C
|
Nominal size DN(mm) |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
Rated flow coefficient(KV) |
Single seat |
8 |
11 |
20 |
32 |
50 |
80 |
100 |
160 |
|
Dou ble seat |
|
|
|
|
53 |
83 |
|
|
|
Rated Stroke(mm) |
6 |
8 |
10 |
15 |
20 |
|
Nominal pressurePN(MPa) |
0.10\1.0 |
|
Pressure regulating range(KPa) |
0.5~5.5\5~10\9~14\13~19\18~24\22~28\26~33\31~38\36~44\2~51\49~58\56~66\64~78\76~90\88~100 |
|
Medium temperature |
≤80 |
|
Accu racy(%) |
≤10 |
|
Seat leakage(1/h) |
Single seat |
10 -4 |
|
Dou ble seat |
5×10 -3 |
