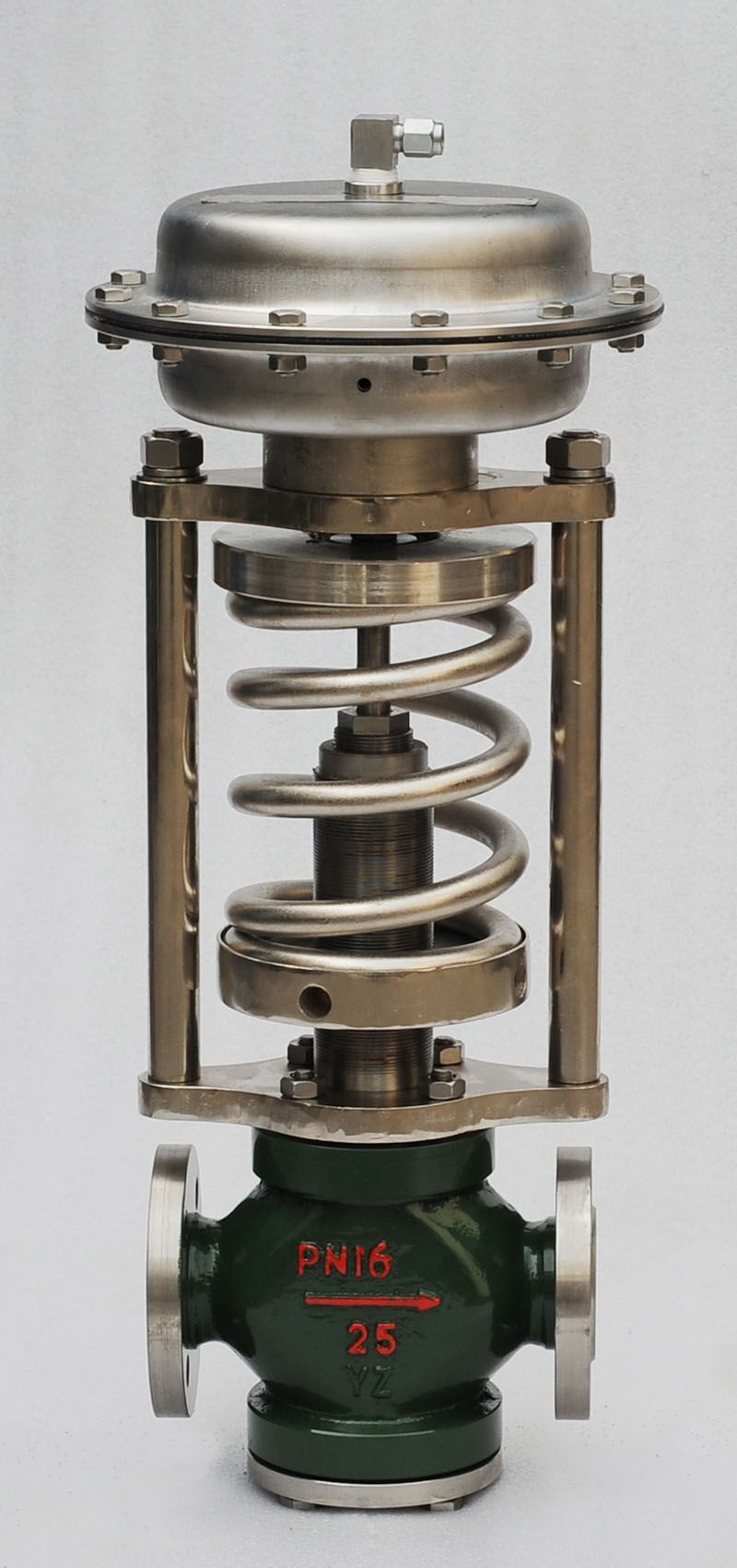

Self-operated pressure regulator
Self-operated pressure regulator do not need any external energy sources, but only be transferred to rely on its own medium pressure change and stability to automatically adjust upstream valve (or downstream valve) pressure for a constant value which is a energy-saving pressure regulator.
The valve is an ideal energy-saving products, which are widely used in control steam pressure stability, and also applies to non-corrosive gases, low viscosity liquid medium congtrol the pressure (downdtream valve), or pressure relief (upstream valve) for automatic control.
1) It is performer products achieving the self-regulation through the self-force of the controlled medium and saving energy at the same time. The setting value of the pressure and temperature may be regulated freely in the process of operation which has the feature of quick opening flow.
With a number of advantages such as the highly sensitive motion, stable controlled parameter, high-precision regulation, and small leak volume, the products are extensively applied to the automatic control for the pressure and temperature under various working conditions
2) Type: ZZY standard/ZZYP pilot/ZZC difference pressure/ZZV tiny pressure
Main technical parameters:
1) Nominal size: DN 20-300mm
2) Nominal pressure: ANSI 150-600lbs
3) Flange standards: ANSI
4) Leakage class: ANSI ≤ VI
5) Body's material: WCB/CF8/CF8M
Shanghai ThinkTank Process Management Co., Ltd. is the sole production and R&D institute of Taiwan STONE Company in Mainland China. ThinkTank entered Chinese market in 2002 and moved from Hangzhou to Shanghai headquarter in 2012. Based on over 30 years experience in researching and manufacturing automatic instruments, brining in overseas advanced technology and combining domestic users real working situation, ThinkTank is specialized in producing new typed self-regulating valves, control valves and various kinds of automatic instruments. ThinkTank's business includes engineering projects such as electricity, metallurgy, petrochemical processing, light industry and building materials, municipal water service and natural gas.
Enterprise history
1985.08 Taiwan STONE company was established in Taipei city.
1990.02 Sales network covered Southeast Asia.
2002.06 Branch office was fund in Hangzhou, Zhejiang, handling all business in China
2012.10 Mainland head office was moved to Pudong, Shanghai
Shanghai ThinkTank Process Management Co., Ltd. Has a professional team works for control valves design and engineering application. ThinkTank develops a series of hi-tech products after absorbing overseas advanced technology and innovating.
*New self-regulating, micro pressure, differential pressure, flow, temperature control valve
*New pneumatic (electric) linear actuator (low dB, high pressure) control valve
*Pneumatic (electric) rotary actuator (O/V ball, butterfly) control valve
*Pneumatic (electric) special corrosion resisting control valve
Shanghai ThinkTank Process Management Co., Ltd sticks to the policy of "client oriented, quality comes first, and faith is root". Depending on many years experience on engineering application in various industries, ThinkTank provide clients with good, reliable full service, focusing on maximizing the rate of return on investment for clients.
