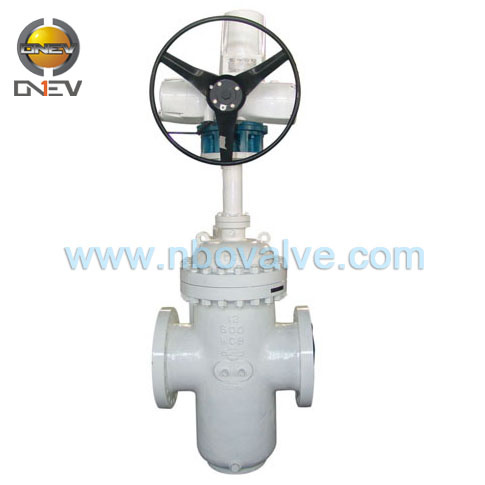

Designed to API 6D specification. Valves are applicable for oil and gas transportation pipeline, oil field, airport, refinery and chemical industry.
Full thru-conduit port is suitable for pigging and wiping. Seats and gate surface can be self cleaned.
Floating Seat: The seat ring is installed with springs to insure constant contact with the gate insuring a perfect seal.
Bi-directional Seal: The valve can provide reliable seal in either direction of downstream and upstream.
Double block and bleed (DBB) Valve with two seating surfaces which in the closed position, blocks flow from both valve ends when the cavity between the seating surfaces is vented through a bleed (drain plug) connection provided on the body cavity.
A visible gate-position indicator rod and a stem protector are provided as a standard feature on handwheel, gearbox and motor operated valves. It's easy to know the gate position at any time.
Stellite alloy can be deposited on sealing surface of seat tings and slab gate to be applicable for special working applications.
Perfect internal and external coatings to meet various application requirements. Special design to meet higher or lower temperature service.
Actuators shall be equipped upon request.
| Pressure | 150lb-900lb |
| Size | 2"-42" |
| Connection | RF, RTJ,BW,SW |
Zhejiang Number One Valve Co., Ltd(ONEV) has been for 15 years in Valve manufacture, design, sales and service. The company covers an area of 18000 square meters.
The main products of ONEV are Ball valve, Gate valve, Globe valve, Check valve, Plug valve, Butterfly valve, etc., API, ANSI, BS, DIN, NF, JIS, JPI, GB, JB. Standard.
ONEV has been accredited to CE, API, ISO 9001: 2000, international qualified certificates. Has set up the perfect quality control and guarantee system to ensure excellent quality and best service.
ONEV for years experience and service, in Chinese industry line and important projects of oil refining, gas pipelines, petroleum, electric power, pharmaceuticals etc. Meantime, our products make a broad market in more than twenty countries over the world, distributed in Europe and United States, South American, Middle East, Southeast Asia, Africa, and have enjoyed good reputation and trust. We will try our best to supply superior quality products, satisfied after-sale service and technical supports to customers.
ONEV always persist in the idea of "All for customer satisfaction" to become bigger and stronger for country valve construction. We warmly welcome all the partners come to co-operate with us and make a brilliant future.
