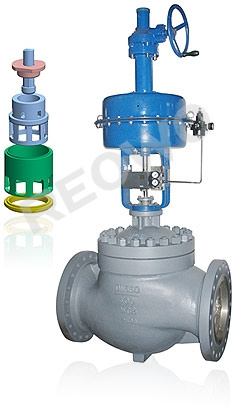

He 10Q Series pilot-operated shut-off valve adopts the cage guided structure and pressure unbalanced plug. It is suitable for shut-off applications with relatively high differential pressure. The plug and seat surfaces are subjected to hard alloy overlay welding to ensure long-time stable running of the valve. For shut-off applications of media of high temperature and service conditions with high differential pressure, we have specially designed the double-plug pressure relief type shut-off valve. The trim of this kind of valve adopts double-plug structure with flow to off design. When opening the valve, first open the small plug, and the starting force is relatively low because the area of thrust surface of the small plug is small. After the small plug is opened, the pressure after the valve is released and the differential pressure acting on the large plug is greatly reduced. The large plug can be opened with a relatively low actuator force. The trim of this kind of structure can meet the need for shut-off applications in service conditions with high differential pressure.
Parameters of control valves:
Trim features: cage guided
Unbalanced trim
Quick disassembly type cage structure
Double-plug pilot-operated structure
Body type: straight-through type
Angle type
Bonnet type: standard type
Heat dissipation type
Flow characteristic: quick open
Size: DN100-400(4"-16")
Pressure class: PN1.6\4.0\6.3Mpa(ANSI 150\300\600LB)
Leakage class: ASME B16.104 V(standard type metal seat)
Pipe connection type: flange type
Butt welding type
Applicable temperature range: -196CC° ~ 550CC°
Actuator type: pneumatic diaphragm actuator
Pneumatic piston actuator
Electric actuator
Zhejiang Jinfeng Automation Meter Co., Ltd. is a high-tech private enterprise specialized in producing various electric and pneumatic control valves, control devices and integrating industrial control systems. The products including various electric and pneumatic control valves, control devices, etc. Produced by our company are mainly applied in such industries as petroleum, chemical industry, steel, metallurgy, building materials, light industry, electric power, environmental protection, food, etc. The products are used in many national key projects and exported to Asia, Europe, etc. The main product series include: 100 Series linear motion control valves, 200 Series gas regulator, 300 Series self-operated control valves, 400 Series parallel gate valve, 500 Series ball valves, 600 Series power station valves, 700 Series butterfly valves, 800 Series axial flow control valves and 900 Series pneumatic actuators, which provide all-round fluid control solutions according to various industrial demands. We took the lead among our peers in China in obtaining TS manufacturing license, ISO9001 certification, CE certification, API certification and other certifications.
Established in 2004, our company is located in Wenzhou of Zhejiang, a coastal city blessed with beautiful scenery, rich resources, talented people and convenient traffic conditions. As a control valve supplier specialized in designing and manufacturing high-end control valves and serving high-end customers, our company has more than 160 employees, 60% of which are technicians and employees with an educational background of university graduate or above. With actual assets of RMB 130 million Yuan, we have been granted more than 30 technological patents. In addition, we have various advanced equipment needed for manufacturing control valves and nationally advanced control valves flow testing systems and laboratories. Our company is a High-tech Enterprise in Zhejiang Province and a first class member of SINOPEC Resources Market.
