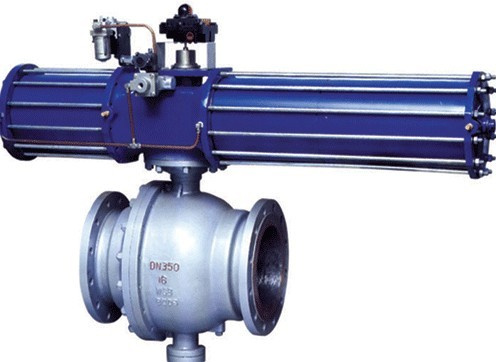

Pneumatic ball valve series are widely used in natural gas, oil, chemical industry, metallurgy, papermaking, power, mining, Etc
Pneumatic ball valve series are widely used in natural gas, oil, chemical industry, metallurgy, papermaking, power, mining, printing and dying, biological, daily chemicals, foodstuff and beverage, water treatment and air treatment ect. For the automatic or adjustment control of fluid, together with automatic pneumatic meters.
Pneumatic Actuator uses new-style F1
Pneumatic actuator, provided with both double-acting and single-acting types(spring
Reposition), driven by gear and rack with high dependability; Big diameter valves
Are driven by F3 pneumatic actuator on pull-extraction manner. With reasonable
Structure and large output torque as well as both double-acting and
Single-acting types(spring reposition). Refer to our stylebook of pneumatic
Actuator.
Design Std.
|
BS 5351
|
Size
|
15 to 300mm (1/2" to 12")
|
Material
|
ASTM A 216 Gr. WCB
ASTM A 351 Gr. CF8 / CF8M
|
Seat
|
PTFE / CFT / GFT / PEEK
|
Pressure Rating
|
Class 150 / 300 - Flanged
Class 150 / 300 / 600 / 800 - Screwed
|
Face to Face Dims
|
ASME B 16.10 - Flanged
|
End Connection
|
Screwed - ASME B 1.20.1 / BS 21
Socket Weld - ASME B 16.11
Flanged - ASME B 16.5 / DIN 2545
|
Testing
|
BS 6755 Part 1 / API 598
|
Shanghai ThinkTank Process Management Co., Ltd. is the sole production and R&D institute of Taiwan STONE Company in Mainland China. ThinkTank entered Chinese market in 2002 and moved from Hangzhou to Shanghai headquarter in 2012. Based on over 30 years experience in researching and manufacturing automatic instruments, brining in overseas advanced technology and combining domestic users real working situation, ThinkTank is specialized in producing new typed self-regulating valves, control valves and various kinds of automatic instruments. ThinkTank's business includes engineering projects such as electricity, metallurgy, petrochemical processing, light industry and building materials, municipal water service and natural gas.
Enterprise history
1985.08 Taiwan STONE company was established in Taipei city.
1990.02 Sales network covered Southeast Asia.
2002.06 Branch office was fund in Hangzhou, Zhejiang, handling all business in China
2012.10 Mainland head office was moved to Pudong, Shanghai
Shanghai ThinkTank Process Management Co., Ltd. Has a professional team works for control valves design and engineering application. ThinkTank develops a series of hi-tech products after absorbing overseas advanced technology and innovating.
*New self-regulating, micro pressure, differential pressure, flow, temperature control valve
*New pneumatic (electric) linear actuator (low dB, high pressure) control valve
*Pneumatic (electric) rotary actuator (O/V ball, butterfly) control valve
*Pneumatic (electric) special corrosion resisting control valve
Shanghai ThinkTank Process Management Co., Ltd sticks to the policy of "client oriented, quality comes first, and faith is root". Depending on many years experience on engineering application in various industries, ThinkTank provide clients with good, reliable full service, focusing on maximizing the rate of return on investment for clients.
