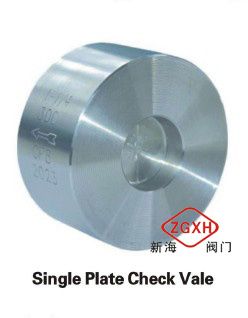

Structure: Check
Pressure: Low to high pressure
Power: Hydraulic
Material: Casting
Temperature of Media: Normal Temperature
Media: Base
1) Sizes: 1/2''-40''
2) Class: 150-1, 500Lbs
3) Material: WCB, LCB, CF8 304, CF8M 316, CF3 304L, CF3M 316L, WC1, WC6, WC9, CN7M, Monel
4) Stardards:
A) Design and manufacture: API 6D, API594
B) Face to face: API 6D, API594, DIN 3202
C) End flange dimensions: ANSI B16.5, ANSI B16.47, API605, MSS SP-44, ISO7005-1, DIN2543-2548
D) Pressure-temperature ratings: ASME B 16.34
5) Inspection and test: API598, API 6D
Structure features:
1, It is short in face to face dimensions, being 1/4-1/8 times that of traditional flange type check valve.
2, It is impact in volume size and light in weight of about 1/4-1/20 times that of traditional flange type check valve.
3, The disc closes quickly with less water hammer pressure.
4, It is convenient in installation, being available for use on level or vertical pipeline.
5, Flow passage is fluent with flow resistance.
6, It acts sensitively with good sealing effect.
7, Disc travel is short with less impact force caused by valve closing.
8, It is impact in integral structure with nice outline view.
9, It is longer for service life with high reliability.
|
Part Name |
Material |
|
Body |
A216WCB |
A352LCB |
A217WC6 |
A217WC9 |
A217C5 |
A217C12 |
A351CF8 |
A351CF8M |
|
Disc |
A351CF8 |
A351CF8 |
A217WC6 |
A217WC9 |
A217C5 |
A217C12 |
A351CF8 |
A351CF8M |
|
Stem |
A182F6a |
A182F304 |
A182F304 |
A182F304 |
A182F304 |
A182F304 |
A182F304 |
A182F316 |
|
Spring |
Stainless steel/ inconel |
Zhejiang Xinhai Valve Manufacturing Co., Ltd, located in Oubei, Wenzhou city, was established in 1986. with more than 20 years experience, our company now becomes a professional valve manufacturer by developing, manufacturing, marketing and servicing. And it covers an area of 10, 000 square meters and has two subsidiary factories.
Our product includes gate, check, globe, ball, butterfly, plug, strainer and other valve. The valves are manufactured according to ANSI, API, DIN, GOST, BS, JIS, Chinese GB standers and the customers' requirements. These products have been installed throughout the world, having a wide variety of applications in the Gas, Oil, Refining, Chemical, Marine, Power Generation and Pipeline Transmission Industries.
Pressure range: Class125-Class2500, PN6-PN420
Size range: NPS1/2-NPS48
Operation type: Manual, gearbox, chain wheel, pneumatic, electronic, etc
Connection End: Flanged, BW, SW, NPT, wafertype, etc.
Materials(casting): WCB, WCC, LCB, LCC, LC1-3, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC5, WC6, WC9, Monel, etc.
In order to introduce the international quality management system, Xinhai have got the approval o ISO 9001, API-6D, CE and Chinese TSG certification. Also, Xinhai established a multi-functionl phys-chemical lab to futher supervise the quelity time to time and fittde out spectrum analyzer, portable spectrograph(PMI), impact tester, hardness meter, tensile tester, thickness meter, magnetic particle tester, gugitive emission tester and NDE testing equipment.
The main target of Xinhai is to offer a high quality products and service to ensure the highest degree of satisfication and fidelity of our customers. Welcome the new and old customers to cooperate with Xinhai to explore wider global markets and create more brilliant future together!
