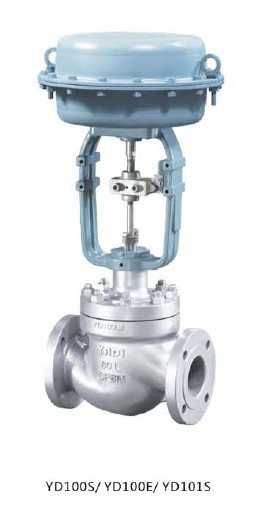

YD100S Single Port Globe Valve(High Pressure Globe Valve)
1. This Single Port Globe Valve is with compact, light weight and extremely accurate designed to meet many common and special application.
2. Furthermore, by changing trim, we can easily changed into cage control valve. Quick change aim to this meaning.
Specifications of YD100S Series Single Port Globe Valve(High Pressure Globe Valve):
1)Body type: YD100S
2)Body size: 1/2"~8" (15A~200A)
3)Body rating: ANSI Class150~2500, PN1.0 MPa ~PN42 MPa
4)Fluid temp.: -196~+538Degree (565 Degree can be up to 565 Degree under high pressure)
5)Connections: (RF\MFM\RJ), (50A SW, 80ABW)
Flange(RF\MFM\RJ), Weld ends (SW: 2" and under, BW: 3" and over)
6)Body materials: WCB(A105)\WC6(15CrMo)\CF8(304SS)\CF8M(316SS)\Monel\HC\HB, etc.
7)Trim materials: 304SS\316SS\17-4pH, etc.
8)Rangeability: 50: 1
9)Flow characteristics: \\ Equal percentage\Linear\ On-off
10)Leakage: Metal seat: Rated CV× 0.01%, ANSI Class IV, Vor MSS-SP-61;
Soft seat: ANSI Class VI
11)Actuator: DY00LAPneumatic Diaphragm Actuator
PY00LAPneumatic Cylinder Actuator
EK00LA\EQ00LASolid State Electronic Actuator
If you are interested in YD100S Single Port Globe Valve, please don't hesitate to contact us!
We provide carbon steel globe valve, stainless steel globe valve, alloy steel globe valve, forged steel globe valve, pressure seal globe valve and bellows sealed globe valve.
Our company is a professional company, which engaged in the area of control valves, especially for those non-standard products is our superiority. For example,
1. YD900E rotary disk on-off valve used for slurry fluid; Abrasive; Corrosive and so on.
2. YD710H desuper-heater for steam system
3. YD100H super high temperature JUG valve for over 1200 centigrade sulfuric acid applications
4. YD300S light-duty butterfly valve for sulfuric acid applications
5. YD400G parallel gate valve for steam system and etc.
