1.Overview:

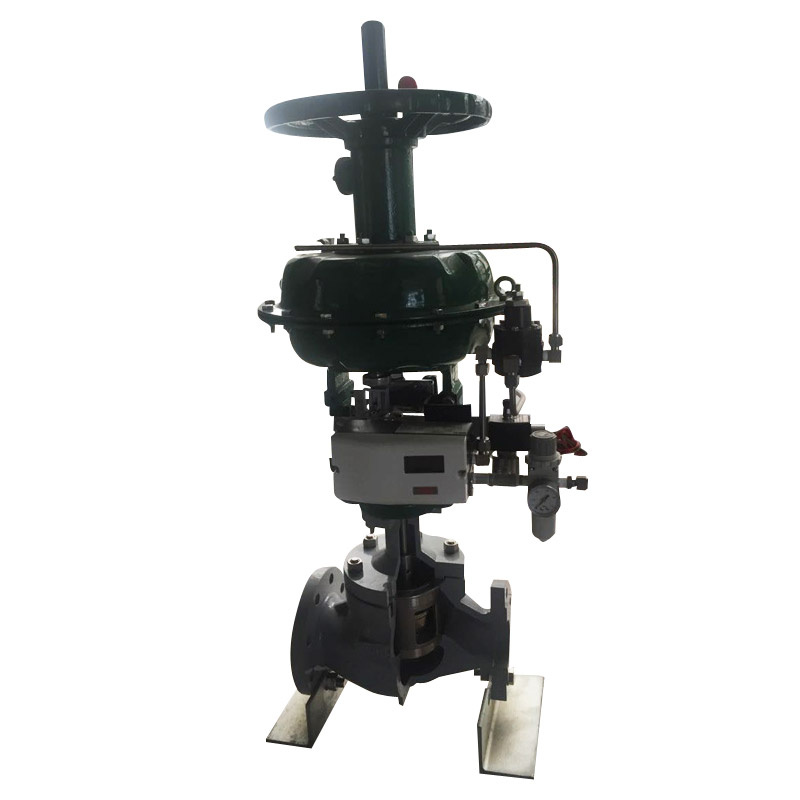

Single seat pneumatic regulating valve is compressed air as power source, the cylinder as the actuator. And with the help of electrical valve positioner, converter valve, valve position and attachment to drive the valve, achieving switching capacity, or proportional adjustment, to receive the control signals from the industrial automation control system to regulate medium in pipes.
,,,,,,.
The regulating valve is composed of a gas dynamic multi spring film executive agencies and the low flow resistance of the single seat valve. The new type of actuator is low in height and light weight, alignment is simple, new body has the advantages of compact structure, smooth flow, with large flow coefficient.
2.Advantages
,,,,..
This product is stable, with reliable performance and small valve seat leakage, accurate flow characteristics and wide adjustable range and so on. It will demonstrate good control effect for its unique advantages in the widely applications.
Name of Parts | Materials | Temp Range |
Body/Bonnet | HT200 | -15~200ºC |
WCB | -20~425ºC |
ZG1Cr18Ni9Ti | -40~550ºC |
ZG0Cr18Ni12Mo2Ti | -40~550ºC |
Valve Plug/Seat Ring | 1Cr18Ni9 | -40~550ºC |
0Cr18Ni12Mo2Ti | -40~550ºC |
Stuffing | Polytetrafluoroethylene | -40~200ºC |
Diaphragm | Nitrile rubber reinforced polyester fabric | |
Compression Spring | 60Si2Mn | |
Film Cover | A3 | |
