1. Low height and slim design with large merchandising area optimizes store foot ultilization;
2. Optional chiller and freezer;
3. Yhe unique anti-fog doors design is beneficial for product appearance for customers;
4. Energy saving & high efficiency options available (LED lighting, T8 lighting, ESM fan motor, Electronic expansion valve and Hot defrost);
5. Suit for city shop and hyper C-store;
6. Standard height 1.9m/2.0m;
7. Temperature range: Chiller 2C to 7C, freezer <-18C.

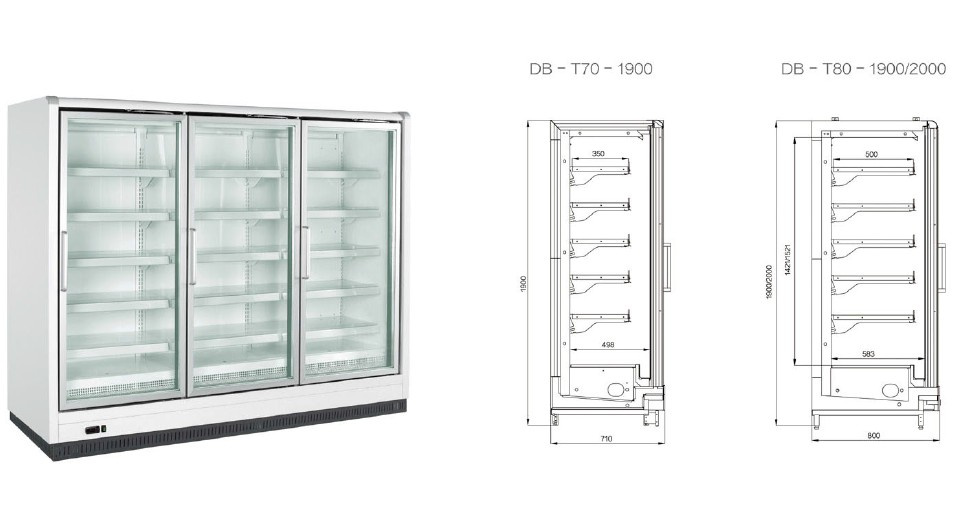

| Model | LXWXH External Dimension/mm | Temperature Range/C | Effective Volume/m3 | Display Area/m3 | Weight/kg |
| DB-T80-1900 5DA8F | 3905*800*1900 | 2 to 7 | 1.1 | 2.20 | 765 |
| DB-T80-1900 4DA8F | 3124*800*1900 | 2 to 7 | 1.65 | 3.30 | 640 |
| DB-T80-1900 3DA8F | 2343*800*1900 | 2 to 7 | 2.20 | 4.40 | 475 |
| DB-T80-1900 2DA8F | 1562*800*1900 | 2 to 7 | 2.75 | 5.50 | 350 |
| DB-T80-2000 5DA8F | 3905*800*2000 | 2 to 7 | 1.18 | 2.4 | 815 |
| DB-T80-2000 4DA8F | 3124*800*2000 | 2 to 7 | 1.77 | 3.60 | 680 |
| DB-T80-2000 3DA8F | 2343*800*2000 | 2 to 7 | 2.36 | 4.80 | 505 |
| DB-T80-2000 2DA8F | 1562*800*2000 | 2 to 7 | 2.95 | 6.00 | 370 |
| DB-T70-1900 5DA8F | 3905*710*1900 | 2 to 7 | 0.77 | 2.20 | 790 |
| DB-T70-1900 4DA8F | 3124*710*1900 | 2 to 7 | 1.16 | 2.30 | 660 |
| DB-T70-1900 3DA8F | 2343*710*1900 | 2 to 7 | 1.54 | 4.40 | 490 |
| DB-T70-1900 2DA8F | 1562*710*1900 | 2 to 7 | 1.93 | 5.50 | 360 |
Qingdao Reliance Refrigeration Equipment Co., Ltd, is a group cooperation of manufacture and trading, specialized in refrigeration equipment and cold room line. Our products include supermarket display refrigerator, upright showcase, kitchen stainless steel refrigerator, kitchen refrigerated counter, cold room, refrigeration compressor unit, compressor racks, evaporator, and condenser etc.
We have strong ability of experitse technic, scientific management, stable and reliable project quanlity and on-time after sevice. We observe the philosophy "Quality First, Reliance Prime". We have cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since the set up. We sincerely welcome you to visit our company or contact us for cooperation!
