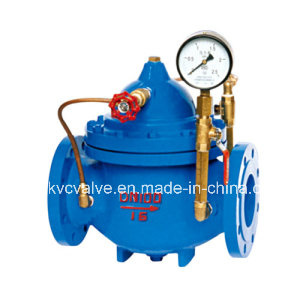

We can supply quality 300X Slow Close Check Valve of a price at your advantage. As a Professional 300X Slow
Close Check Valve Manufacturer, We looking forward to have business with you. Welcome to inquiry!
APPLICATIONS:
The check valve is installed at the downstream of the pump, to protect the pump.
One-way isolation
To prevent backflow
To eliminate the water hammer
DRIVE MODE:
Hydraulic power
FEATURES:
Hydraulic pressure driven- independent operation
Non-slam closing - Eliminates system surges
In-line serviceable - Easy maintenance
Flexible design - Convertible to hydraulic valve
Semi-straight flow - Non-turbulent flow
STANDARD AND TECHNICAL DATA:
Design and Manufacture: Q/TOXT 01-2004, ANSI, JIS, DIN, ISO
Face to Face: CJ/T219, ANSI, JIS, DIN, ISO
Flanges: ISO7005.2
Inspection and Test: GB/T 13927 JB/T9092
PN:1.0MPa-2.5MPa
DN:50-450mm
Applicable Temp.:0-80ºC
Applicable Medium: water, sewage.
NOTE: Internal and External epoxy coating
Body Material:Ductile Iron
Operating:Hydraulic power
Connection:Flange
Sealing:Soft sealing
Pressure Test Specification:
Kaiweixi (KVC) specializes in the development, research, manufacture, and sales of valves. Established in 2003 with a registered capital USD7, 000, 000, Kaiweixicovers an area of 104, 000 square meters and has 360 employees, with 51 advanced technicians and 11 senior engineers. Our products covering plug valves, ball valves, check valves, globe valves, gate valves and hydraulic control valves conforming to ANSI/API, DIN, BS, JIS, EN and GB standards have been welcomed by clients in China and abroad.
